U150

U150

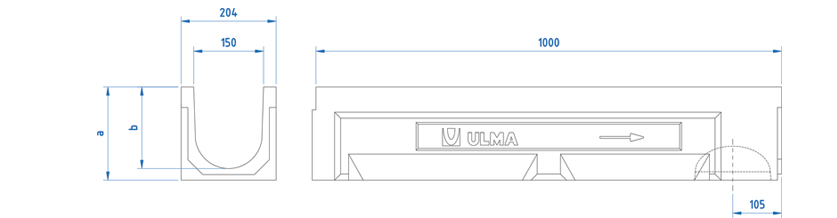

Polymer concrete Linear Drainage Channel ULMA, type U150: External width 204mm; Internal width 150mm; Available with overall heights to collect rain water in 1 metre long units. Locking system consists of locking bar CS150 and screws.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
U150.00R 1000mm 200mm 204mm 150mm 160.0 110.0 230.0 45.0 25.50427 11.81793 DWG PDF
U150.10R 1000mm 250mm 204mm 150mm 160.0 305.0 36.0 31.38762 18.10455 DWG PDF
U150.20R 1000mm 300mm 204mm 150mm 160.0 380.0 27.0 36.09012 25.27618 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX150UCBM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX150UCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN150UCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP150UCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX150UCB33 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX150UCB 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Single Slot C-250 GR150UOC Without screws DWG PDF
Galvanized Steel Double Slot C-250 GDR150UOC Without screws DWG PDF
Stainless Steel Perforated A-15 IP150UCA 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AU150S+A150I+A150B Sump Unit drawing DWG PDF
AU150S+A150B Sump Unit drawing DWG PDF
AU150 Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver with Slot grating DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Installation beside Kerb DWG PDF
