Shallow channel drains for height-limited areas at Lyon-Perrache station

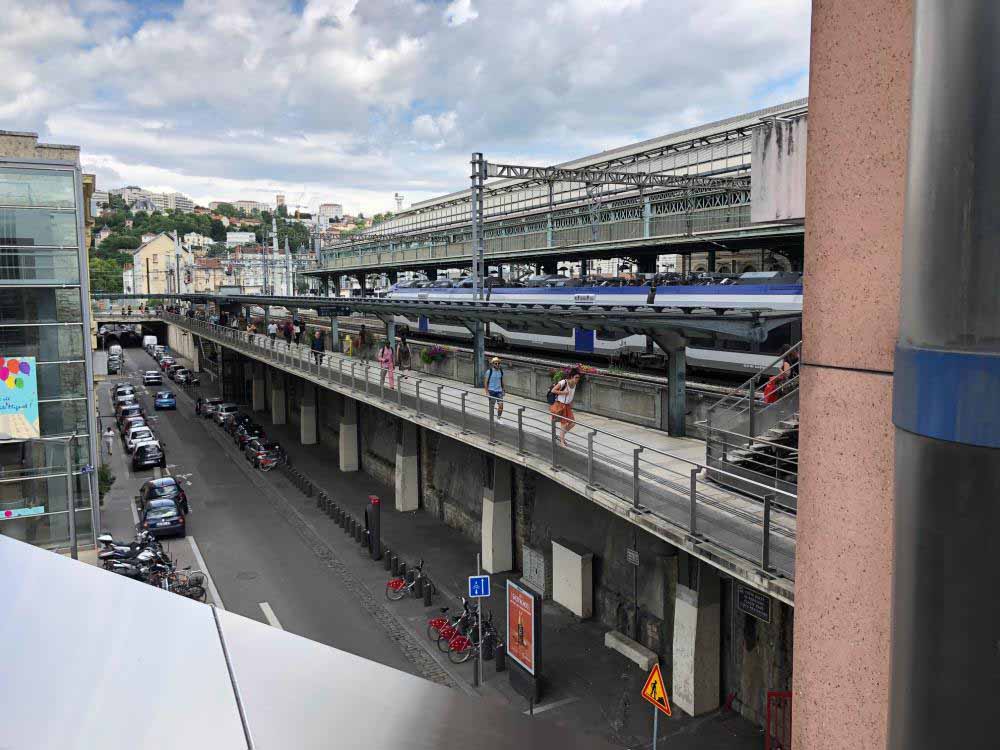

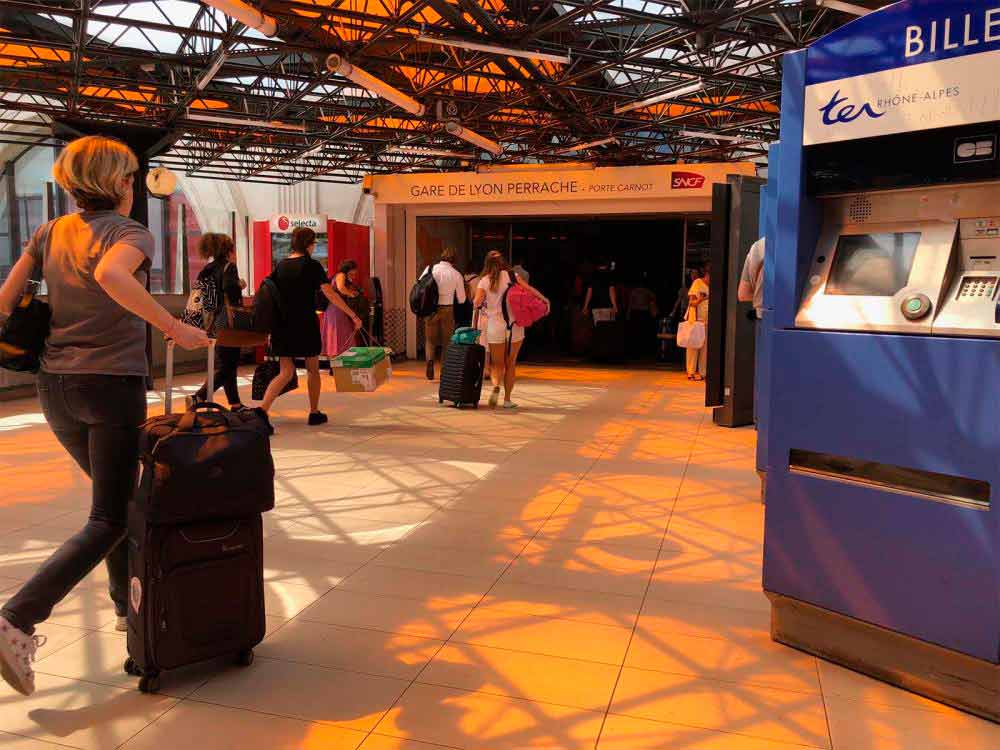

Lyon-Perrache station is the oldest railway station in Lyon, and is located in the city centre. It is a multimodal station as it groups together trains, metro, trams and buses in a single location.

The challenge presented by RAZEL BEC, the construction firm in charge of refurbishing the station, was the need for shallow drainage channels, since the idea was to install them in an existing reinforced slab.

OUR SOLUTION: LOW HEIGHT CHANNELS MINI

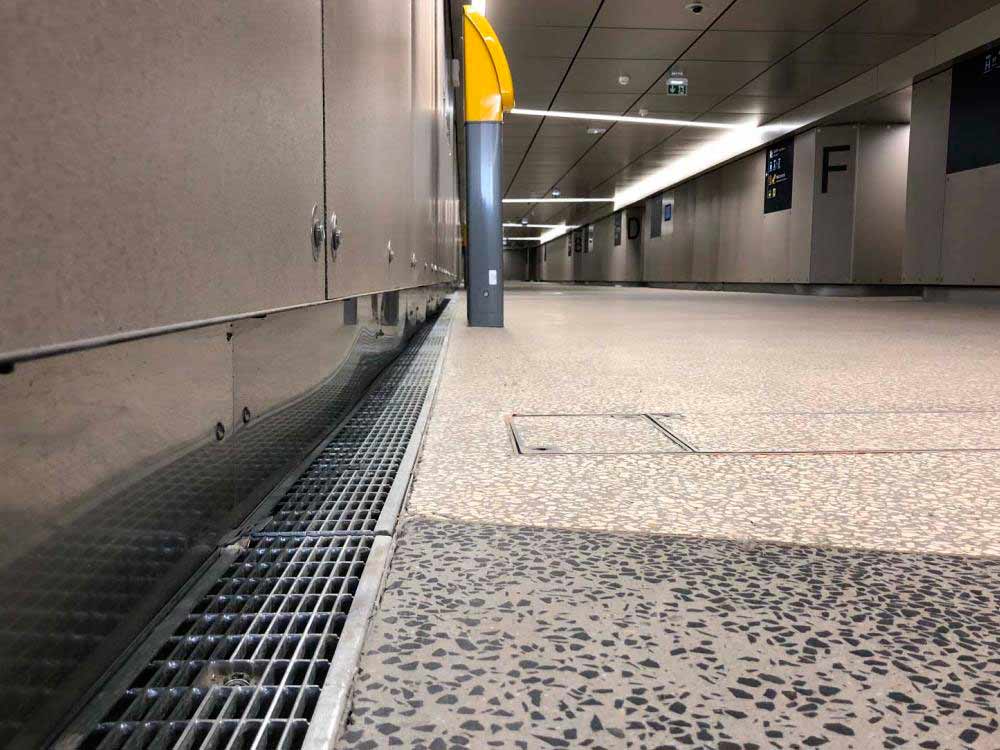

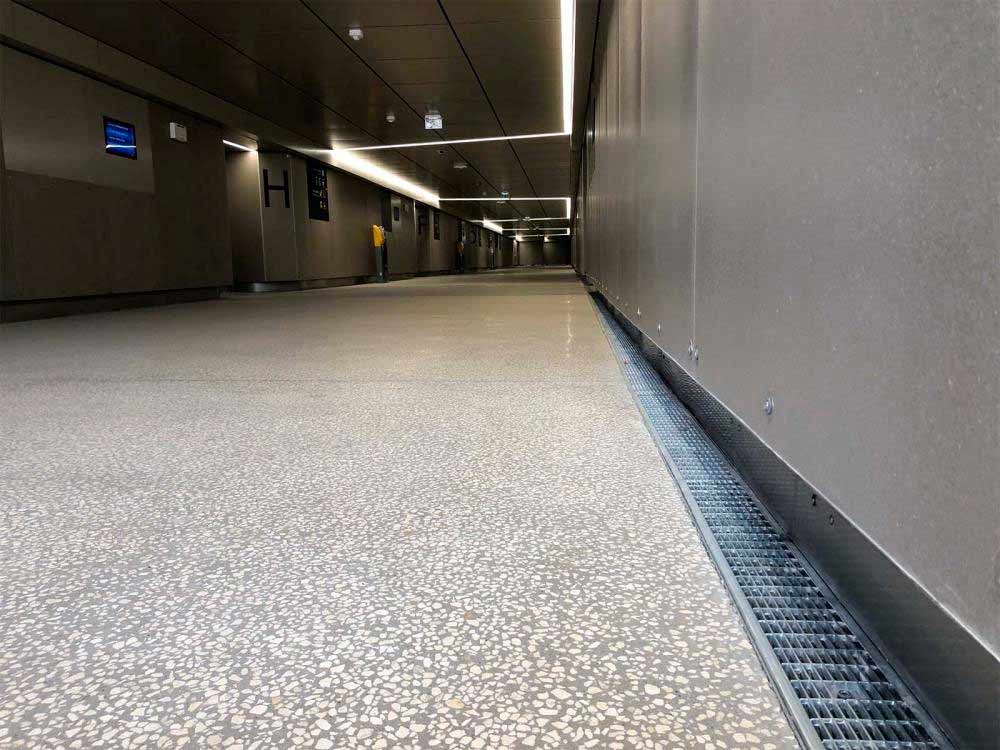

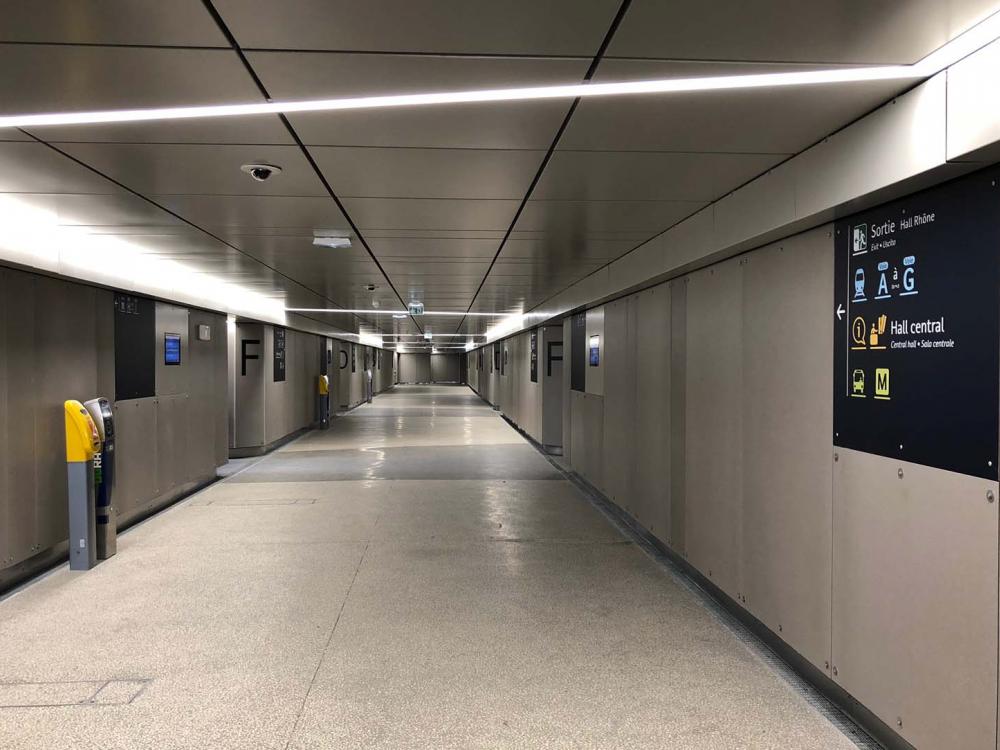

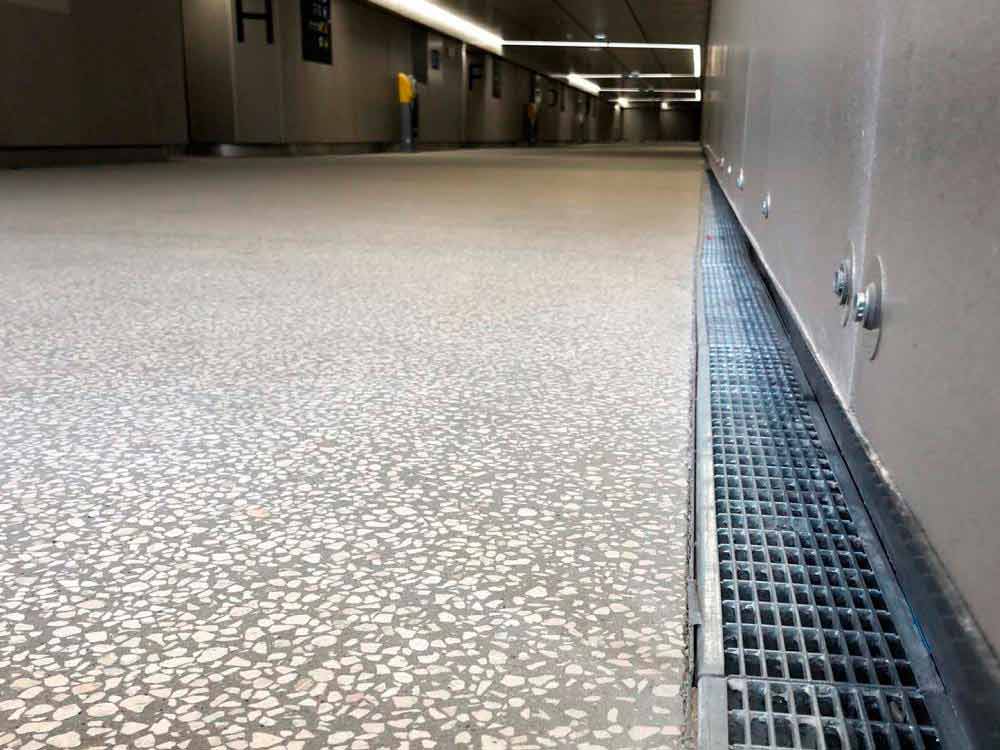

ULMA Architectural Solutions supplied mini range polymer concrete shallow drainage channels. This range is specially designed for areas with height limitation and load classes up to C250. Since this specific case involved a pedestrian tunnel, channels with heel-proof grates that comply with PMR regulations for people with reduced mobility were installed.

Our solution was installed at the new entrance on the southern side of the station, which connects different routes through a ramp that leads to the underpass below the Rhone River.
