HYDRO250PLUS

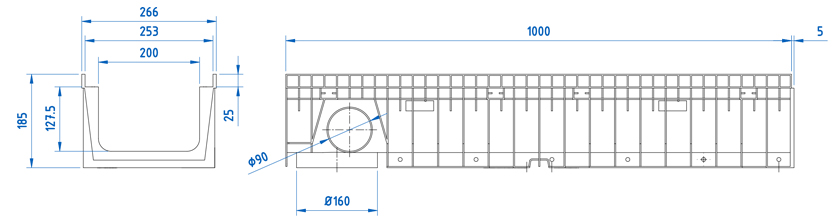

ULMA Linear Drainage Channel , type HYDRO: External width 266mm; Internal width 200mm; and overall height 185mm, to collect rain water in 1 metre long units. Locking system consists of locking bar and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Units
(x pallet) |
||||
|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | ||||||
| HYDRO250PLUS | 1000mm | 185mm | 266mm | 200mm | DWG | ||||
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX200KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX200KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| INSTALLATION DETAILS | ||
|---|---|---|
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
