F150MF

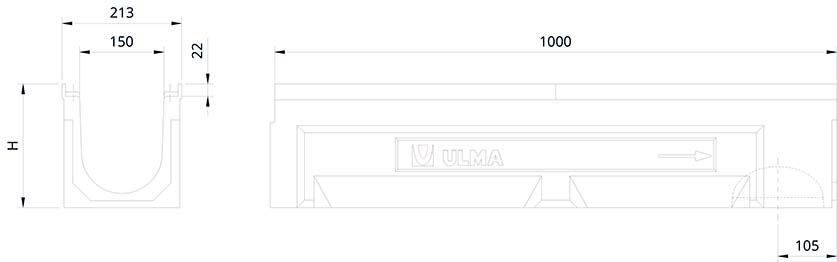

Polymer concrete Linear Drainage Channel ULMA, type F150MF: External width 213mm; Internal width 150mm; Available with overall heights between 145mm and 370mm; Suitable also with 2,5% presloped channels or cascaded slope, to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Alt total
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| F150MF00R | 1000mm | 220mm | 213mm | 160mm | 160mm | - | 230.0 | 45.0 | 33.20 | 11.6 | DWG | |
| F150MF10R | 1000mm | 270mm | 213mm | 150mm | 160mm | - | 305.0 | 36.0 | 33.45 | 17.8 | DWG | |
| F150MF20R | 1000mm | 320mm | 213mm | 150mm | 160mm | 160mm | 375.0 | 27.0 | 41.52 | 24.9 | DWG | |
| F150MF30R | 1000mm | 370mm | 213mm | 150mm | 160mm | - | 457.0 | 27.0 | 43.94 | 33.2 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX150FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | D-400 | FNHX150FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | E-600 | FNX150FTEM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX150FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | F-900 | FNHX150FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC150FTFM | 8 screws per metre | DWG | |
| Ductile Iron Stainless | Slotted (Standard) | D-400 | FIN150FTDM | 8 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF150S+A150I+A150B Sump Unit drawing | DWG | |
| AF150S+A150B Sump Unit drawing | DWG | |
| AF150 Sump Unit drawing | DWG | |
| Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
| Installation details. Asphalt Transversal to the traffic direction | DWG | |
| Installation details. Concrete Longitudinal to the traffic direction | DWG | |
| Installation details. Concrete Transversal to the traffic direction | DWG | |
| Installation details. Installation beside Kerb | DWG | |
