Slot drainage, aesthetics and functionality

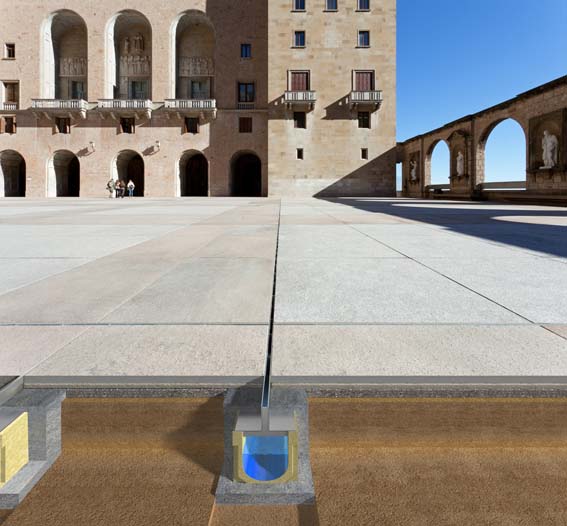

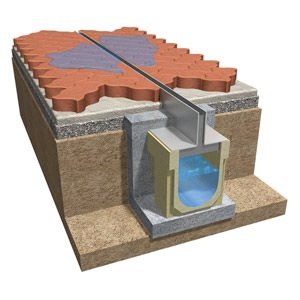

ULMA slot drainage is part of a comprehensive system that consists of the grating, the drainage channel and sump unit for optimal maintenance of the drain line.
Slot drainage, aesthetics and functionality

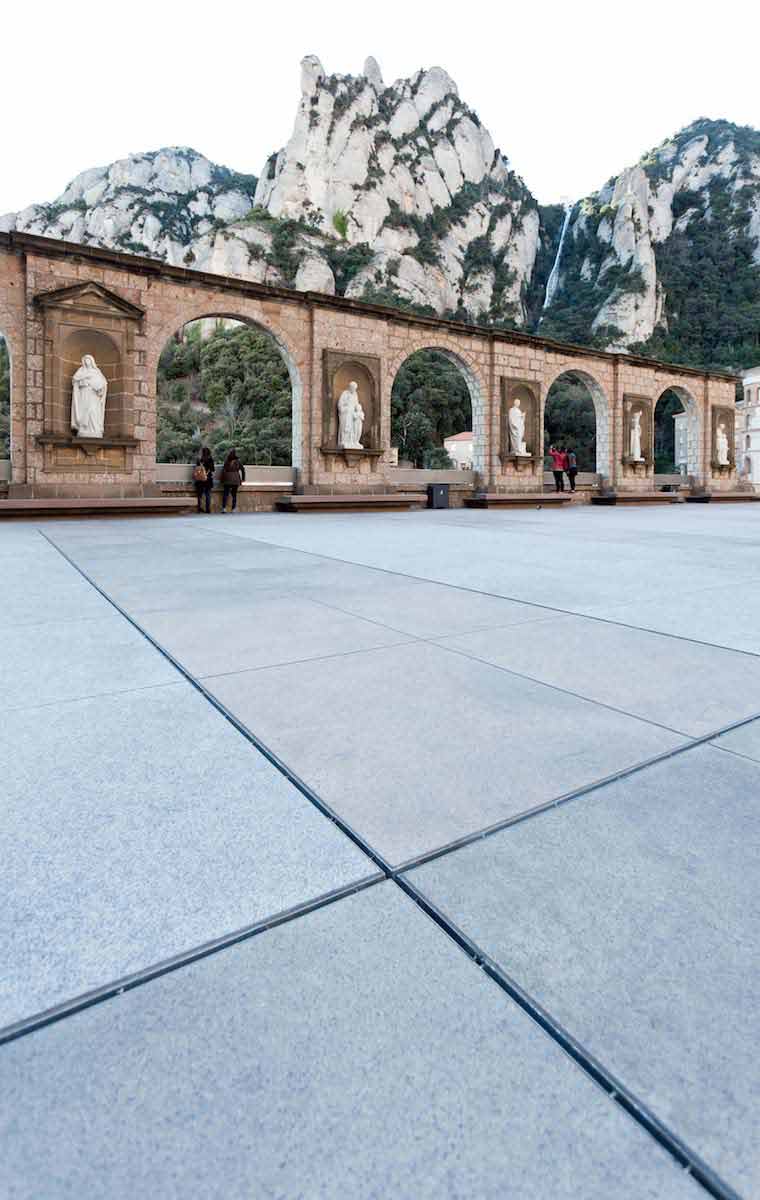

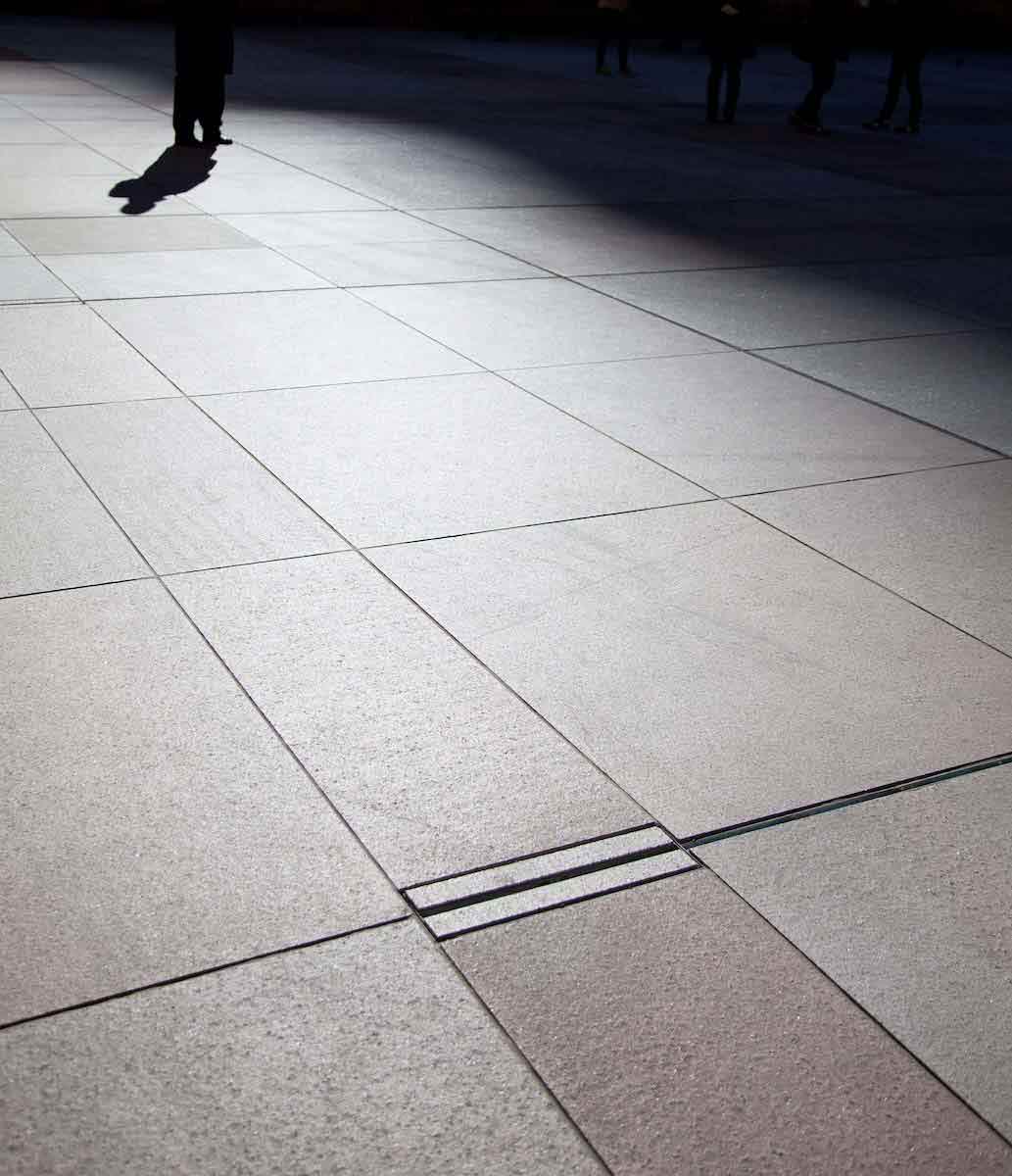

It is a grating with an inverted "T" shape, and is particularly appreciated for its aesthetic, as it fits perfectly into the pavement (either concrete, cobblestone or tile) achieving a complete camouflage in the urban landscape.
It involves a comprehensive system developed by the ULMA Department of Engineering, adaptable to different channel models and available in galvanized and stainless steel.

Supports a load class up to D-400 according to standard EN1433, suitable for road highways, pedestrian streets, sidewalks and parking areas for all types of road vehicles.
The slot drainage can be single, double for increased hydraulic efficiency, or side to be installed in areas close to walls.
This grating  is compatible with this channels of the SELF Family:


• Euroself
• Dome
• Self
• Self200


Family URBAN:
• U100
• U150


Family Multi V +:
• Multiv100
• Multiv150

For more information.

Ask for a quote/information

Catalogues

Technical Catalogue

Technical Catalogue

Download
Product range

Product range

Download

Save time and money with the guarantee of our technical department.

We do it for you:

I want the hydraulic calculation of my project
