M100V

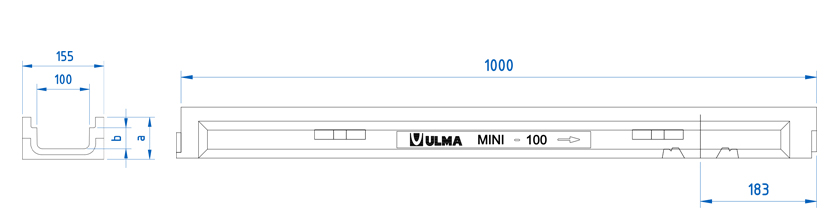

Polymer concrete Linear Drainage Channel ULMA, type M100V: External width 155mm; Internal width 100mm and overall height 80mm to collect rain water in 1 metre long units. Locking system consists of 2 screws per metre.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| M100V | 1000mm | 80mm | 155mm | 100mm | 90.0 | 40.0 | 120.0 | 11.53 | 0.8 | DWG | ||
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100KCBM | 2 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100KCCM | 2 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | C-250 | FNHX100KCCM | 2 screws per metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100KCA | 2 screws per metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100KCA | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100KCB | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100KCB | 2 screws per metre | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100KCA | 2 screws per metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100KCA | 2 screws per metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM | 2 screws per metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM-GRIS | 2 screws per metre | DWG | |
| Composite | Mesh (Standard) | B-125 | PE100KCBM | 2 screws per metre | DWG | |
| INSTALLATION DETAILS | ||
|---|---|---|
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
