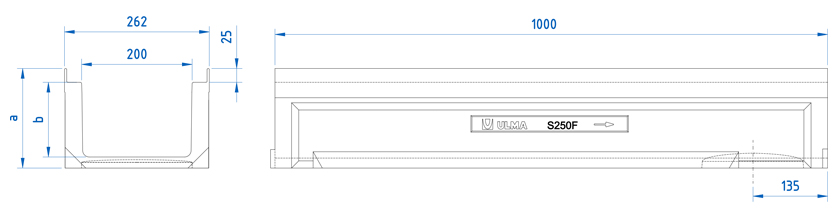

Polymer concrete Linear Drainage Channel ULMA, type S250F: External width 260mm; Internal width 200mm and overall height of 180mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
S250F 1000mm 180mm 260mm 200mm 160/200mm - 260.0 28.0 31.87 12.5 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) D-400 FNX200FTDM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) E-600 FNX200FTEM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) F-900 FNX200FTFM 8 screws per metre DWG PDF
Ductile Cast Iron Solid F-900 FC200FTFM 8 screws per metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AS250F Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver onto a floor frame DWG PDF
