M150

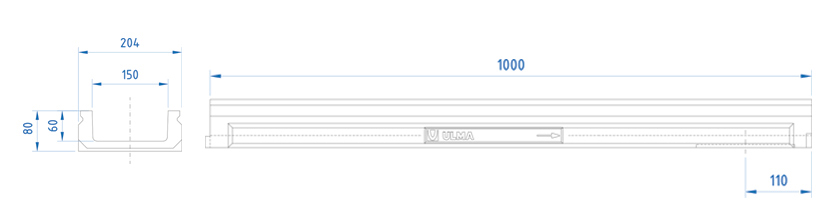

Polymer concrete Linear Drainage Channel ULMA, type M150: External width collect rain water in 1 metre long units. Locking system consists of 2 screws per metre.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| M150 | 1000mm | 80mm | 204mm | 150mm | 160mm | - | 89.0 | 72.0 | 15.52 | 2.5 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX150UCBM | 2 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX150UCCM | 2 screws per metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN150UCA | 2 screws per metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP150UCA | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX150UCB33 | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX150UCB | 2 screws per metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP150UCA | 2 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| ASELF200 Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
