DP100.20

DP100.20

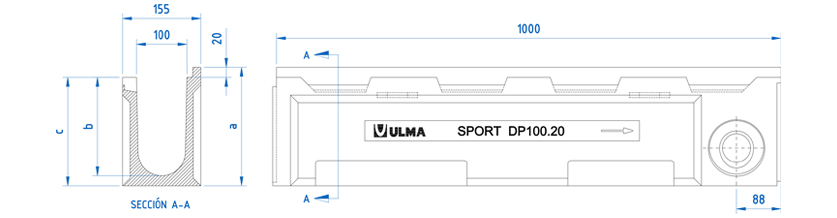

Polymer concrete Linear Drainage Channel ULMA, type DP100.20: External width 155mm; Internal width 100mm and overall heights 235mm to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws, with polymer concrete stepped edges for lateral protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
DP100.20 1000mm 235mm 155mm 100mm 110mm 110mm 178.0 52.0 22.11 9.46045 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX100KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX100KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX100KCB 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Slotted (Standard) A-15 IN100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Perforated A-15 IP100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM 2 locking bars and 2 screws per linear metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM-GRIS 2 locking bars and 2 screws per linear metre DWG PDF
Composite Mesh (Standard) B-125 PE100KCBM 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
ADP100 Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
