DP100.20

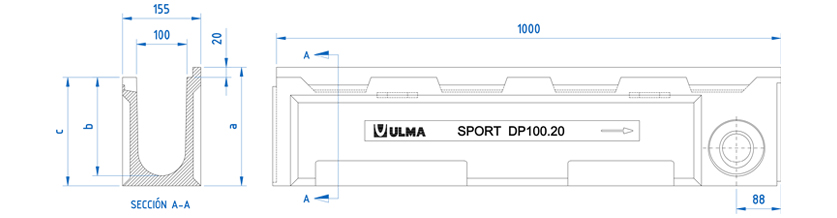

Polymer concrete Linear Drainage Channel ULMA, type DP100.20: External width 155mm; Internal width 100mm and overall heights 235mm to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws, with polymer concrete stepped edges for lateral protection.
Channel options
CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Exterior | Interior | Vert. | Horiz. | |||||||||
DP100.20 | 1000mm | 235mm | 155mm | 100mm | 110mm | 110mm | 178.0 | 52.0 | 22.11 | 9.46045 | DWG |
Grating options
Material | Design | Load Class | Code | How to fix | ||
---|---|---|---|---|---|---|
Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100KCBM | 2 locking bars and 2 screws per linear metre | DWG | |
Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
Ductile Cast Iron | Slotted (Heelproof) | C-250 | FNHX100KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Perforated | A-15 | GP100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Slotted (Standard) | A-15 | GN100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Mesh (Standard) | B-125 | GEX100KCB | 2 locking bars and 2 screws per linear metre | DWG | |
Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100KCB | 2 locking bars and 2 screws per linear metre | DWG | |
Stainless Steel | Slotted (Standard) | A-15 | IN100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
Stainless Steel | Perforated | A-15 | IP100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
Composite | Slotted (Heelproof) | A-15 | PNH100KCAM | 2 locking bars and 2 screws per linear metre | DWG | |
Composite | Slotted (Heelproof) | A-15 | PNH100KCAM-GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
Composite | Mesh (Standard) | B-125 | PE100KCBM | 2 locking bars and 2 screws per linear metre | DWG |
SUMP UNITS AND INSTALLATION DETAILS | ||
---|---|---|
ADP100 Sump Unit drawing | DWG | |
Installation details. Asphalt | DWG | |
Installation details. Concrete | DWG | |
Installation details. Paver | DWG | |
Installation details. Paver onto a load-bearing slab | DWG |
