DPS100

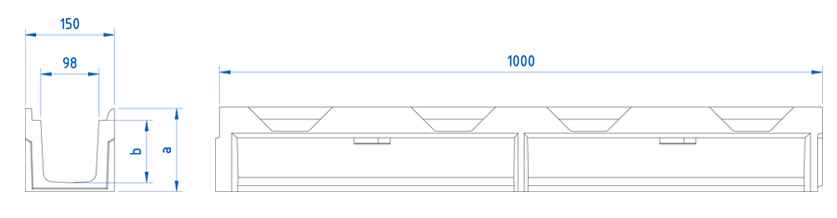

Polymer concrete Linear Drainage Channel ULMA, type DPS100: External width 150mm; Internal width 98mm and overall height 140mm to collect rain water, with side entries for additional water collection, in 1 metre long units. Locking system consists of locking bar CS100 and screws, with polymer concrete stepped edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| DPS100 | 1000mm | 140mm | 150mm | 98mm | - | - | 95.0 | 91.0 | 12.59 | 3.62396 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100KCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | C-250 | FNHX100KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM-GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Mesh (Standard) | B-125 | PE100KCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| ADPS100 Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
