DPS100

DPS100

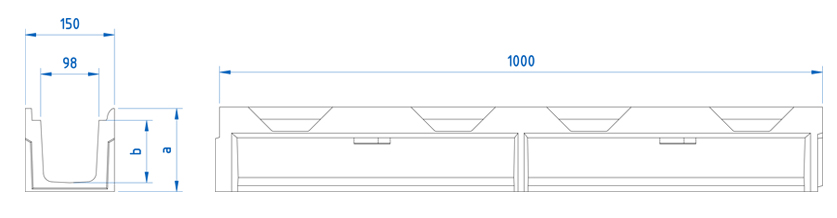

Polymer concrete Linear Drainage Channel ULMA, type DPS100: External width 150mm; Internal width 98mm and overall height 140mm to collect rain water, with side entries for additional water collection, in 1 metre long units. Locking system consists of locking bar CS100 and screws, with polymer concrete stepped edges for lateral protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
DPS100 1000mm 140mm 150mm 98mm - - 95.0 91.0 12.59 3.62396 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX100KCBM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX100KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX100KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX100KCB 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX100KCB 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Slotted (Standard) A-15 IN100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Perforated A-15 IP100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM 2 locking bars and 2 screws per linear metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM-GRIS 2 locking bars and 2 screws per linear metre DWG PDF
Composite Mesh (Standard) B-125 PE100KCBM 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
ADPS100 Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
