SU200

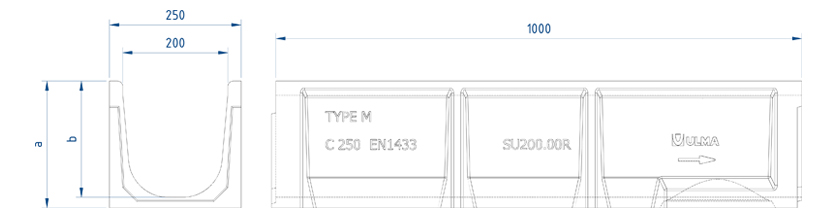

Polymer concrete Linear Drainage Channel ULMA, type SU200: External width 250mm; Internal width 200mm; Available with overall heights between 240mm and 390mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Locking system consists of locking bar CS200 and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Alt total
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| SU200.00R | 1000mm | 240mm | 250mm | 200mm | 200mm | - | 385.0 | 28.0 | 31.91012 | 22.69745 | DWG | |
| SU200.10R | 1000mm | 290mm | 250mm | 200mm | 200mm | - | 465.0 | 28.0 | 35.88112 | 30.46417 | DWG | |
| SU200.20R | 1000mm | 340mm | 250mm | 200mm | 200mm | - | 540.0 | 21.0 | 42.15112 | 38.66577 | DWG | |
| SU200.30R | 1000mm | 390mm | 250mm | 200mm | 200mm | - | 620.0 | 21.0 | 47.68962 | 48.19489 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX200UCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN200UCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX200UCB33 | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX200UCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slot | C-250 | GR200UOC | Click. Without Screws | DWG | |
| Galvanized Steel | Double Slot | C-250 | GDR200UOC | Click. Without Screws | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AU200 Sump Unit drawing | DWG | |
| AU200S+A200I+A200B Sump Unit drawing | DWG | |
| AU200S+A200B Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
