Formats and sizes

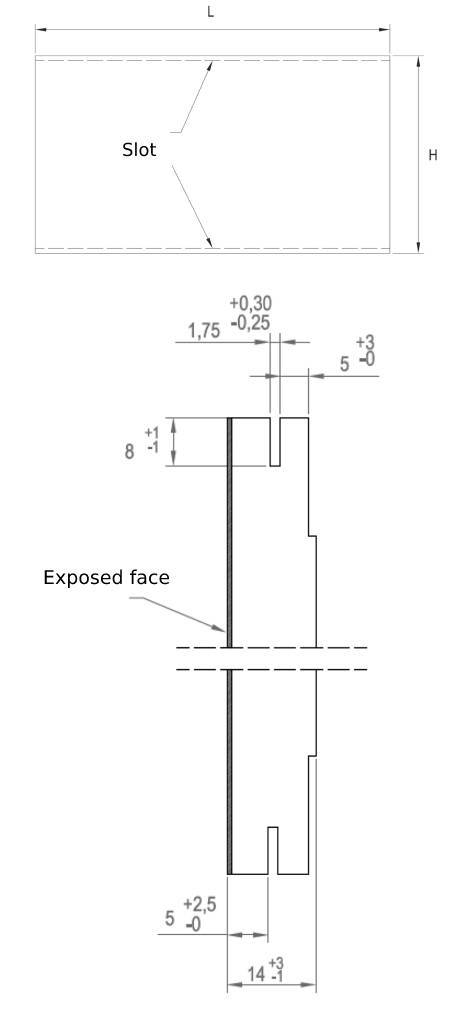

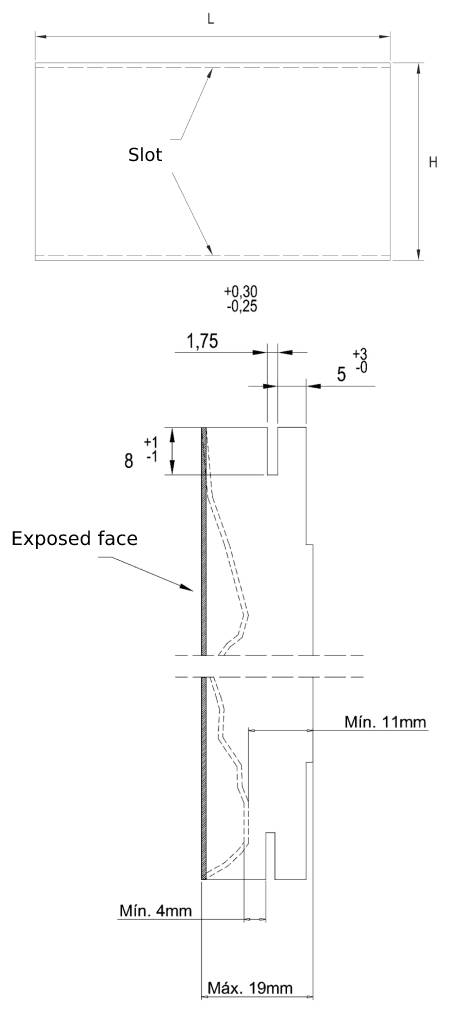

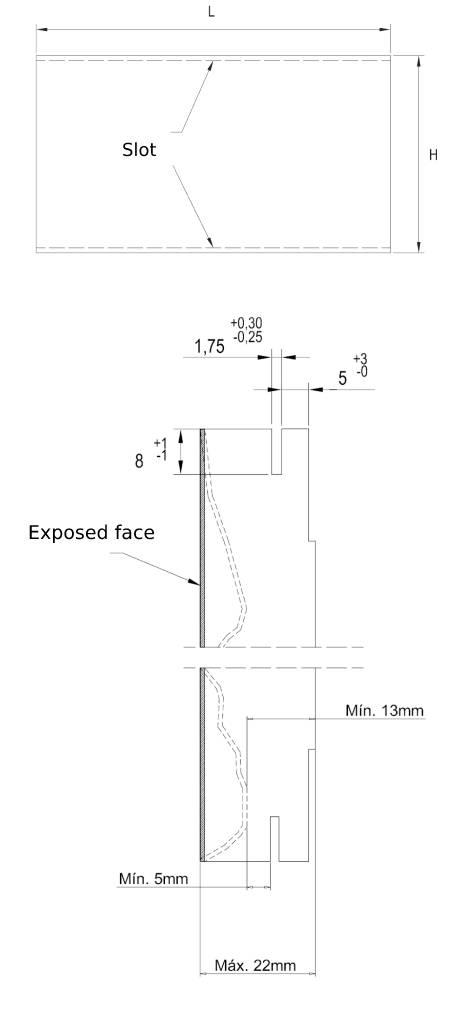

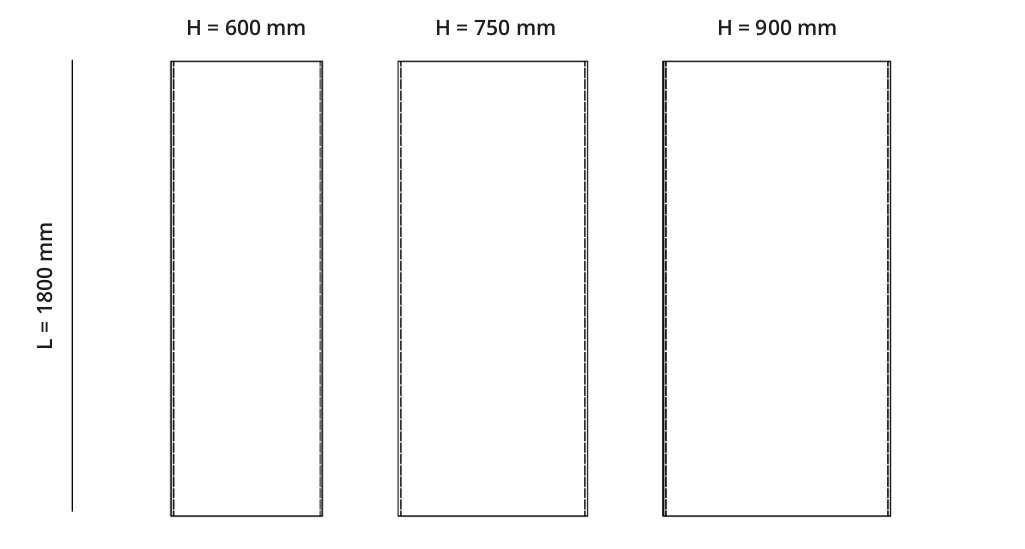

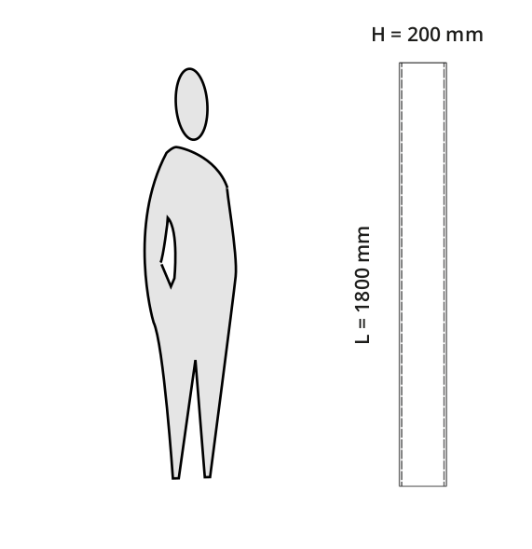

Choose the formats for your envelope from these sizes.

Installation systems

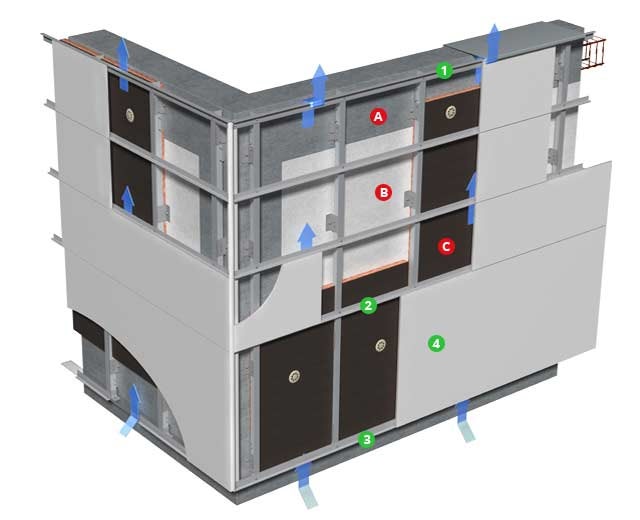

Horizontal system

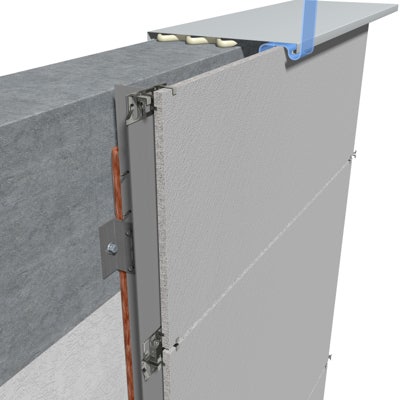

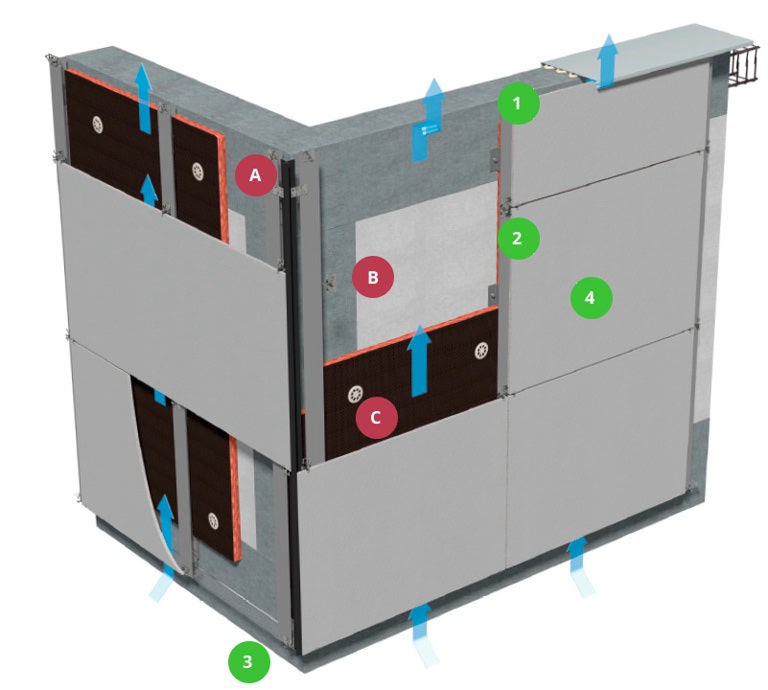

Horizontal installation
AFloor slab
1Continuous inverted starter rail profile
BBase wall
2Continuous rail profile
CThermal insulation
3Continuous starter rail profile
4Engineered Stone panel

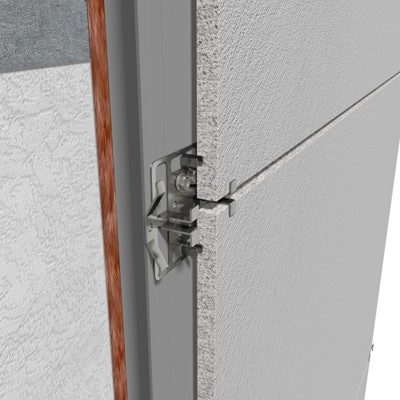

Fixed point bracket

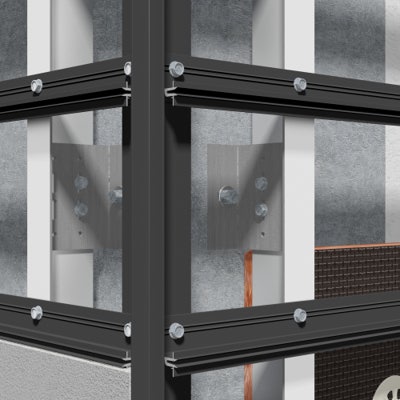

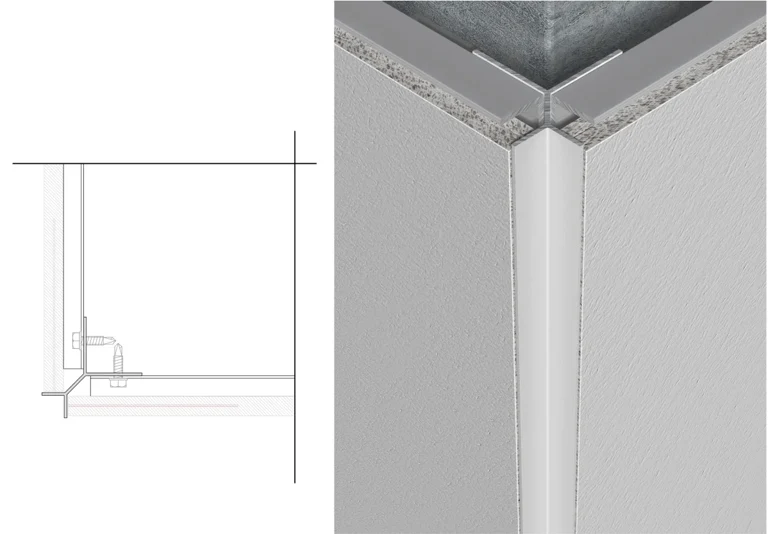

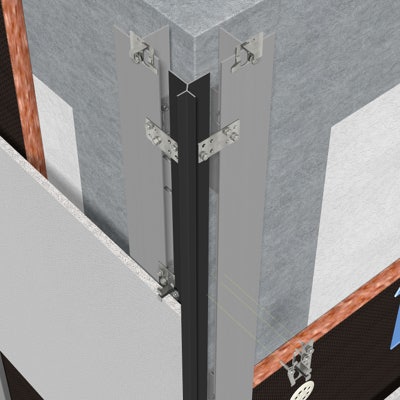

Y profile corner detail

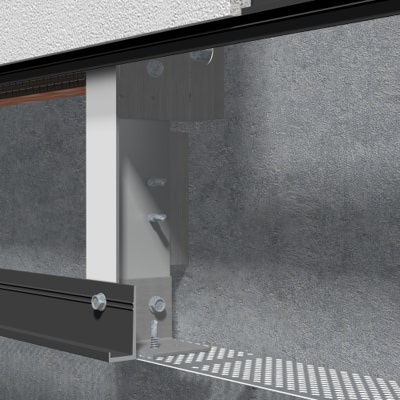

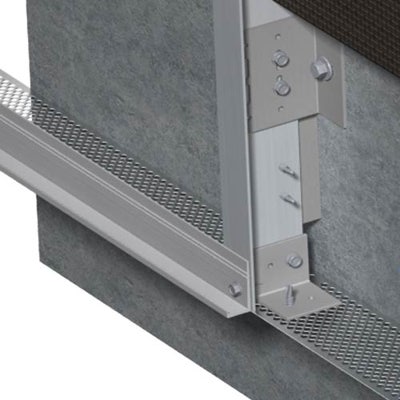

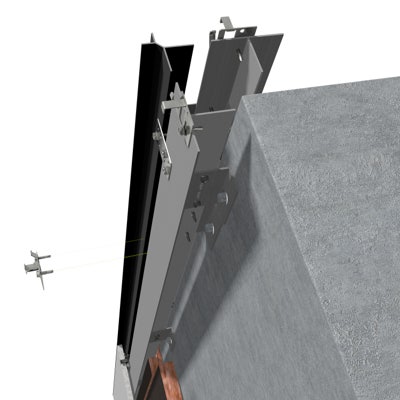

Anti rodent grid and starter rail profile detail

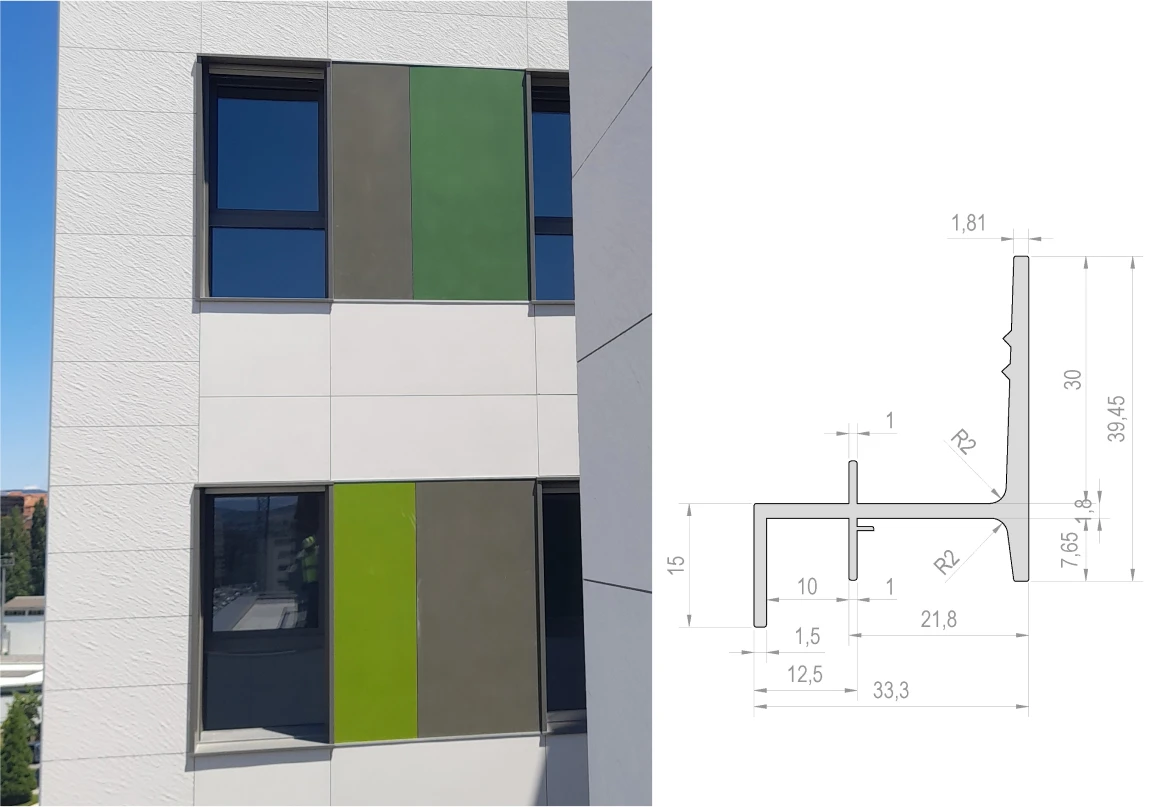

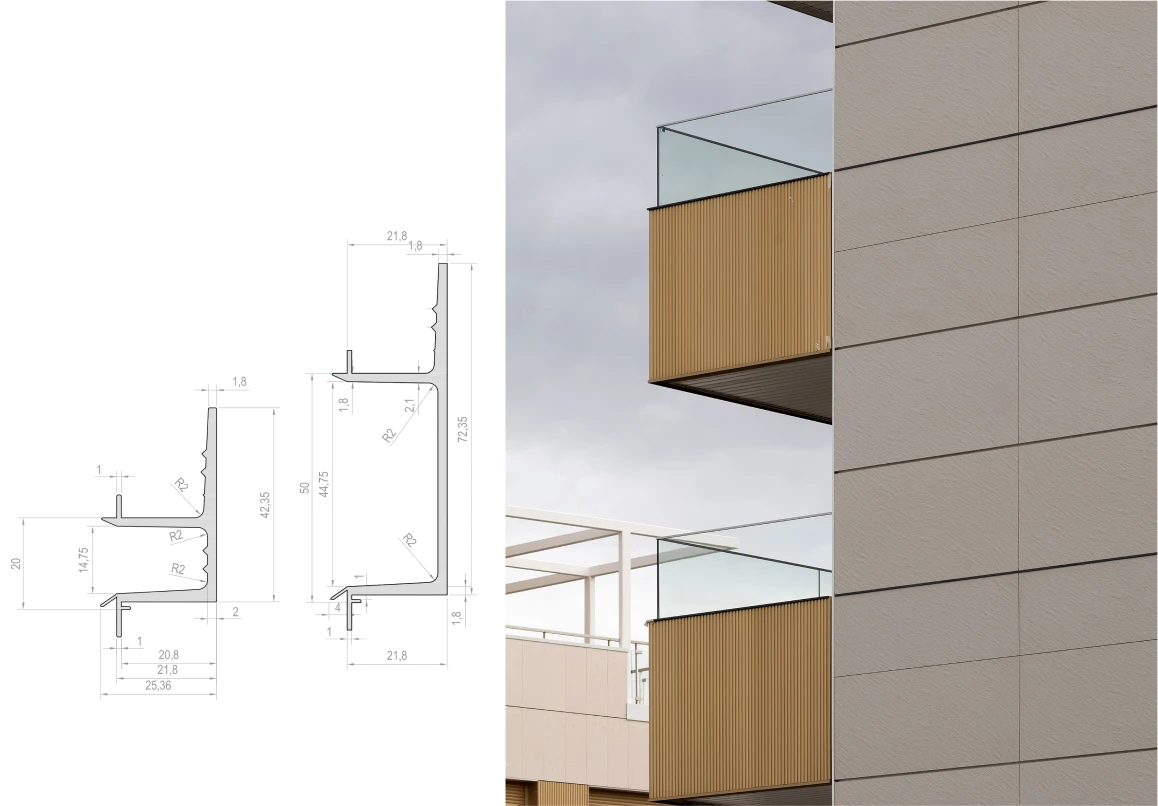

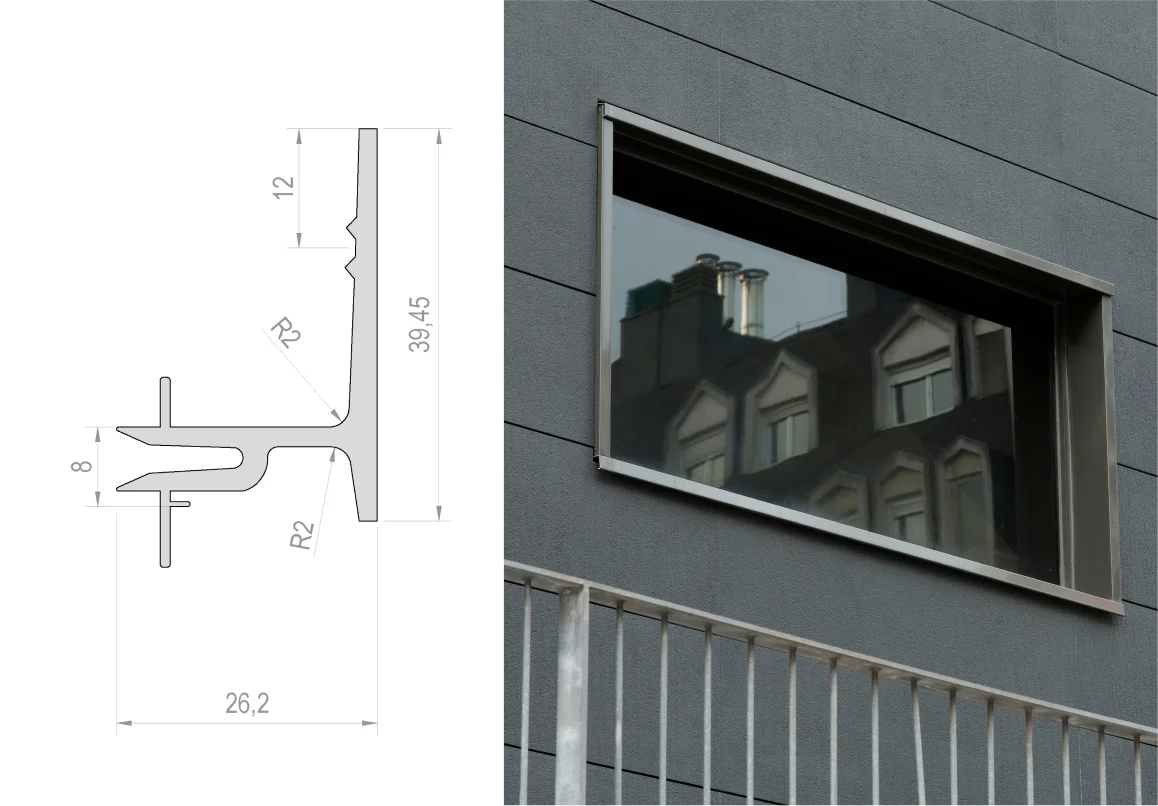

Rail profile detail

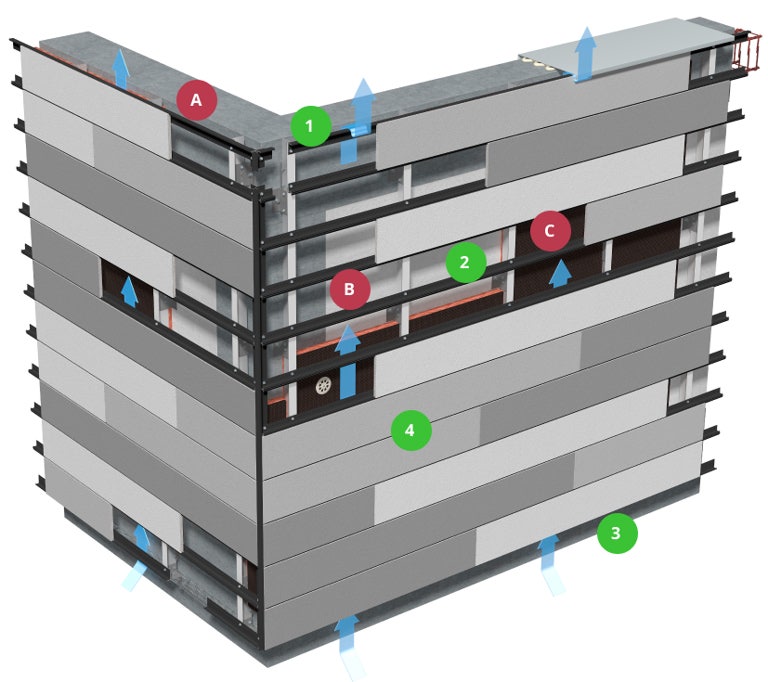

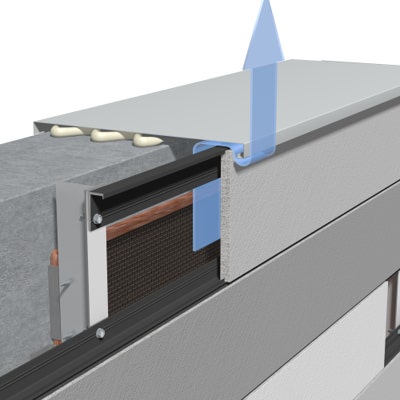

Air output from chamber

Connection at floor structure and base wall and sliding point bracket

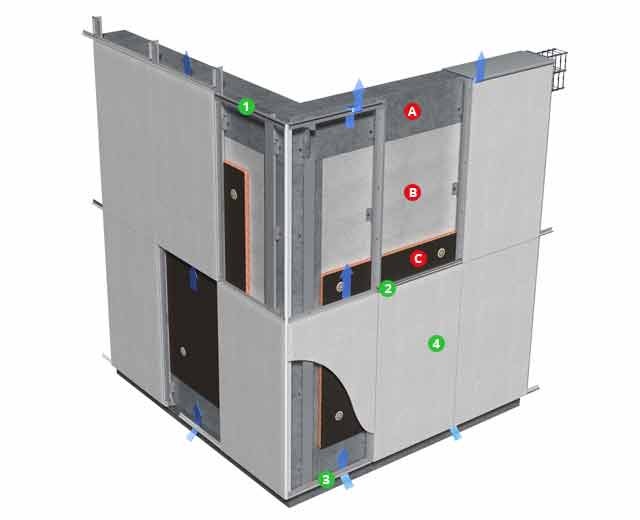

Vertical installation system

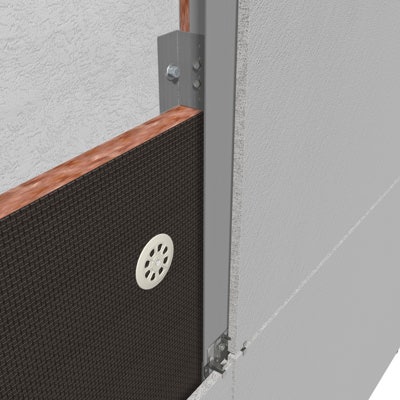

Vertical installation
AFloor slab
1Continuous inverted starter rail profile
BBase wall
2Continuous rail profile
CThermal insulation
3Continuous starter rail profile
4Engineered Stone panel

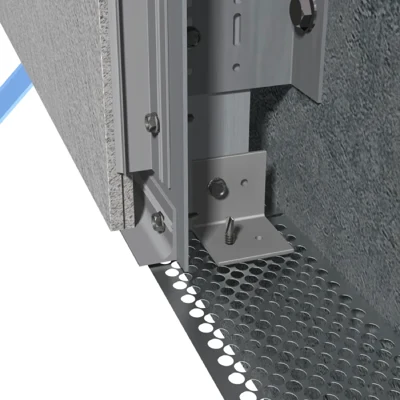

Anti rodent grid

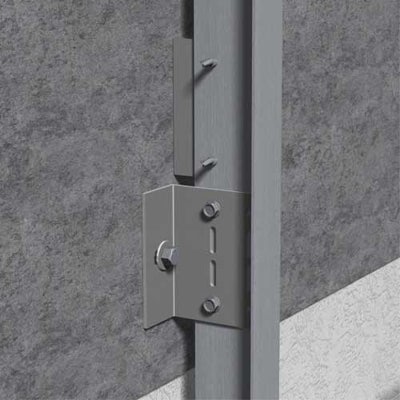

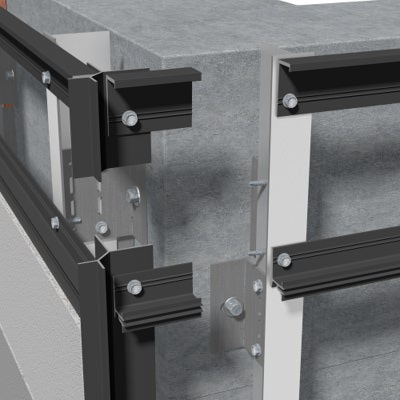

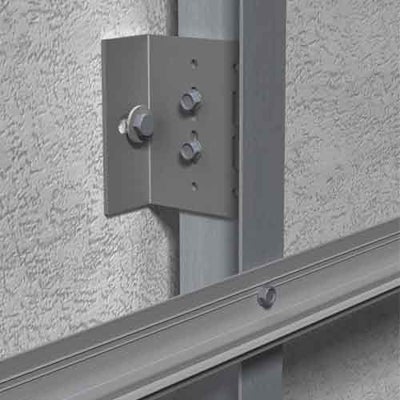

Double support angle Fixed point bracket

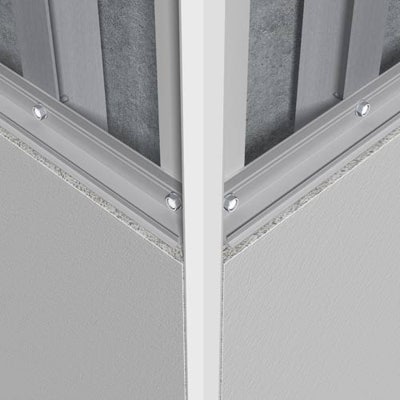

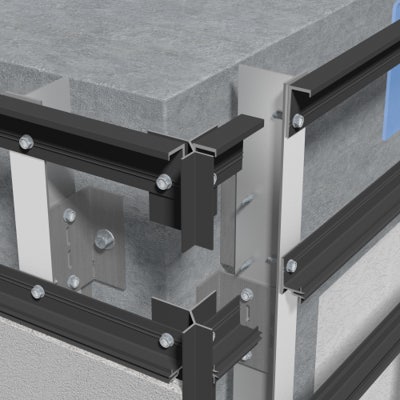

Y-profile corner

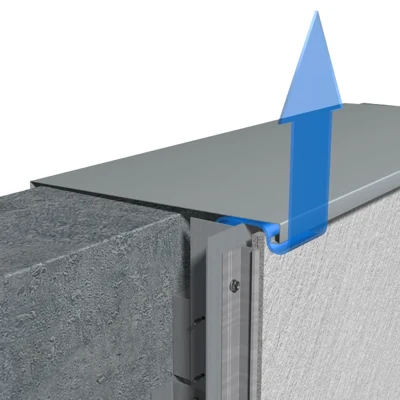

Air outlet from chamber

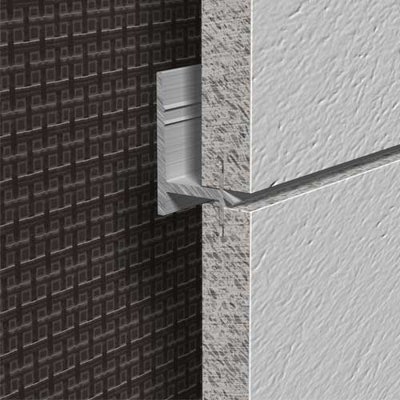

Types of joints

joint type 1
3.5 mm joint
joint type 1
8 mm deep joint
joint type 3
15 mm exposed joint
joint type 4
20 mm deep joint

Although joints between facades panels are a construction element, you can also go one step further and use them as decorative elements.

And as we know that joints can be useful tools when designing a facade, we have various options: we have joints that are 3.5 mm, 8 mm and 15 mm, as well as the deep 20 mm joint.

You have the option of experimenting with the joints so that they also fulfill an aesthetic function.

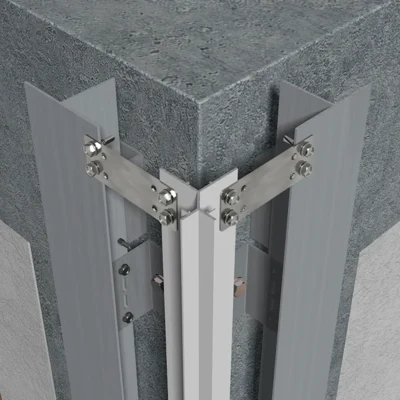

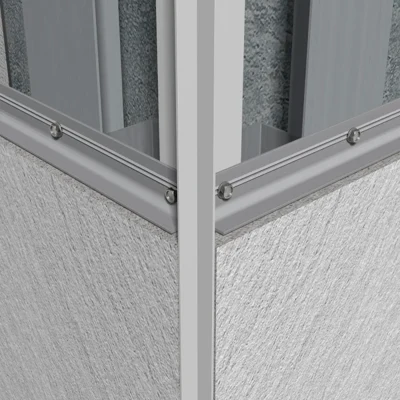

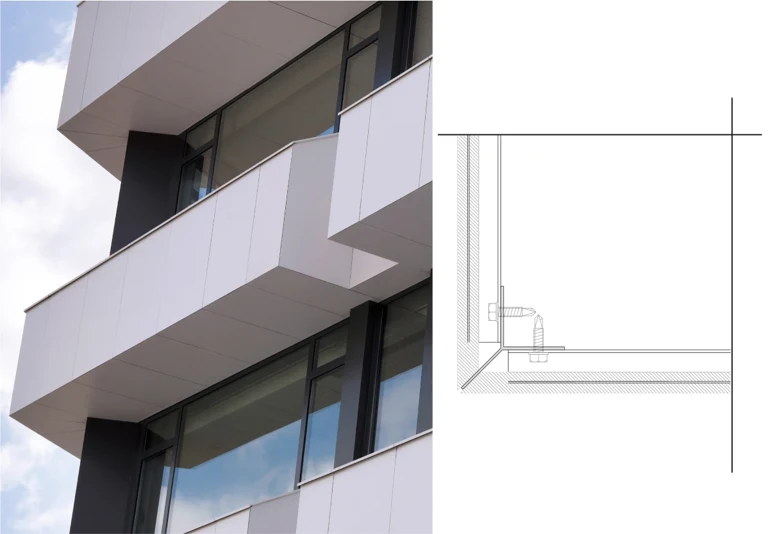

Types of corner

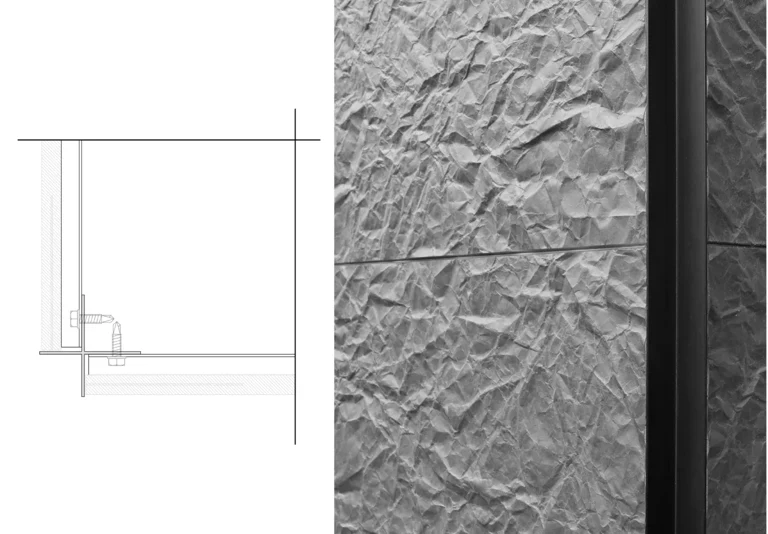

Solution on X
Solution on Y
Solución en Z

Types of window surrounds

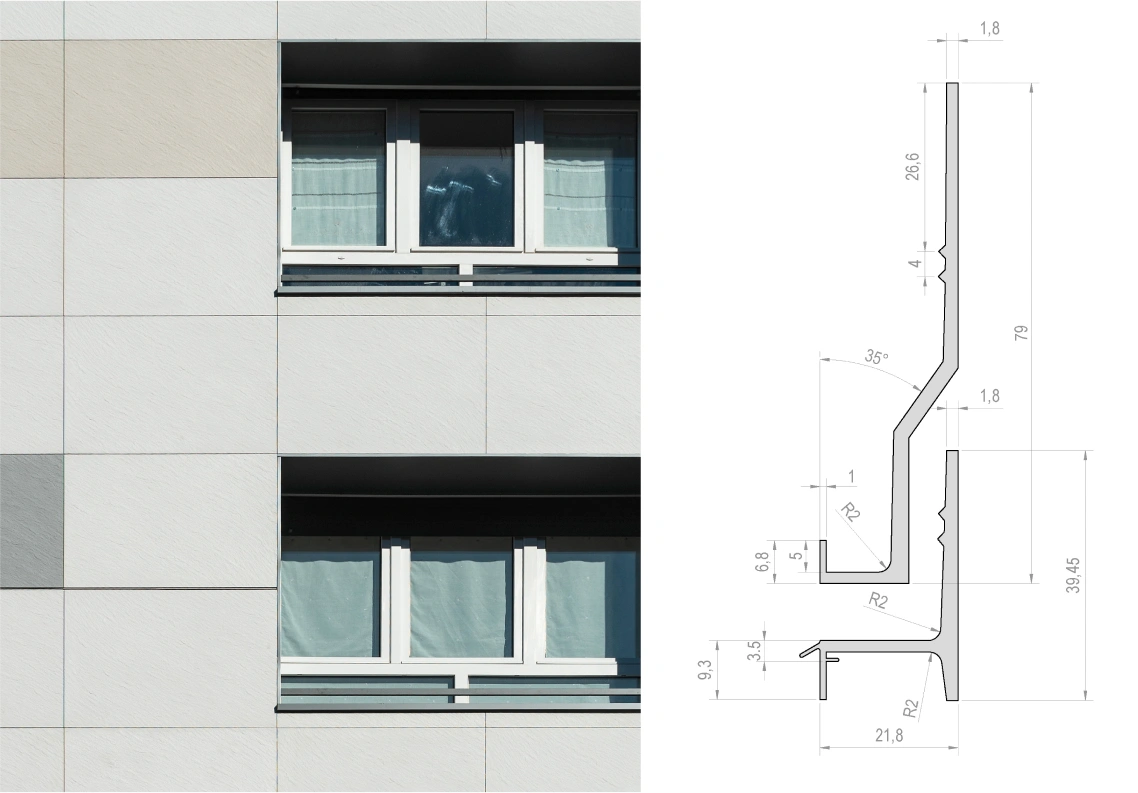

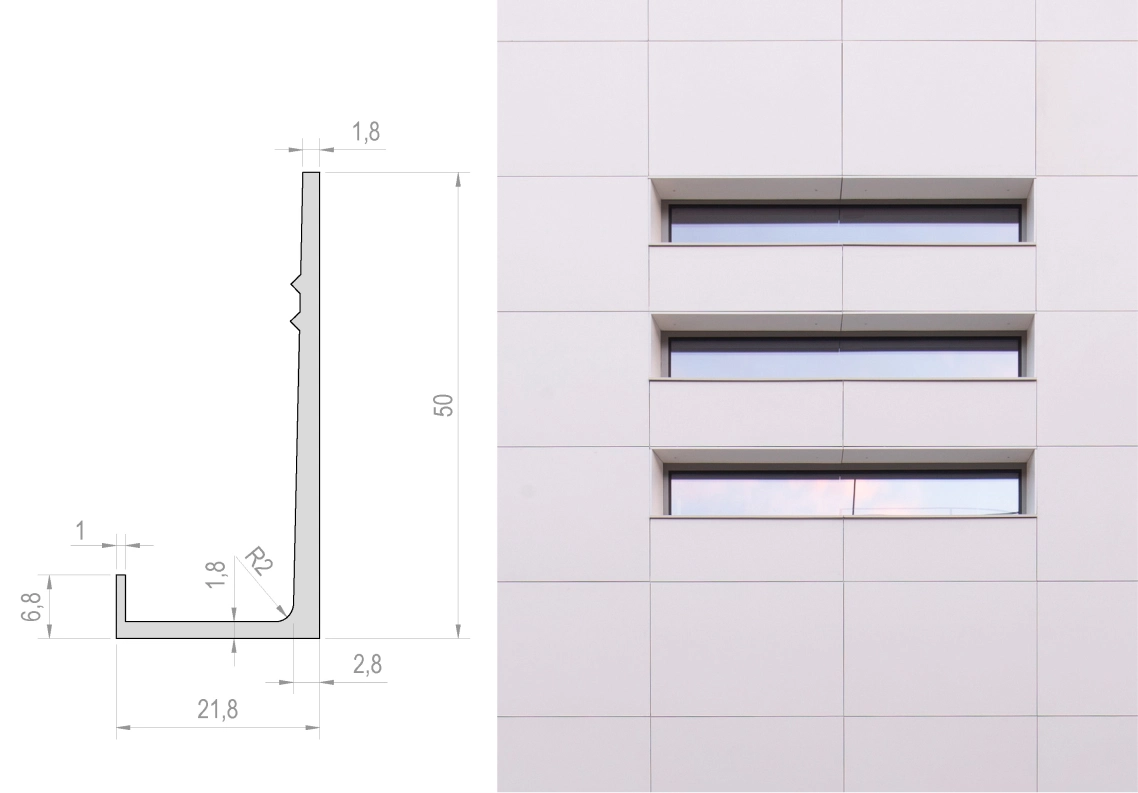

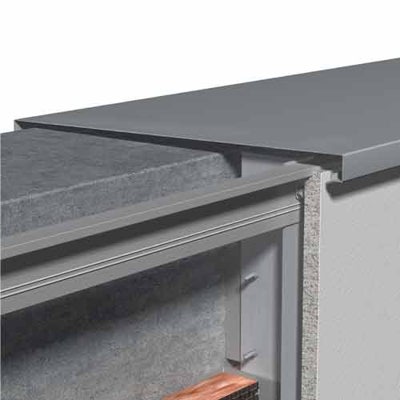

Aluminium window surrounds

DRAWINGS IN PDF | DRAWINGS IN DWG

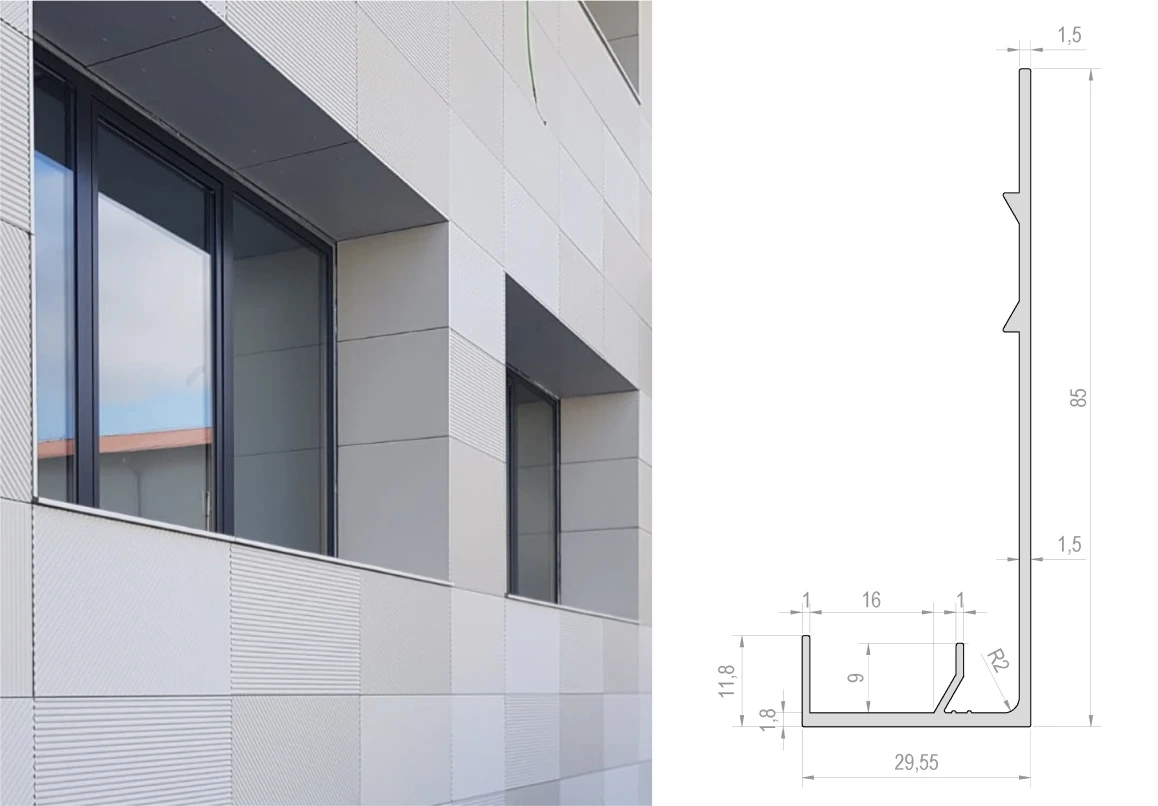

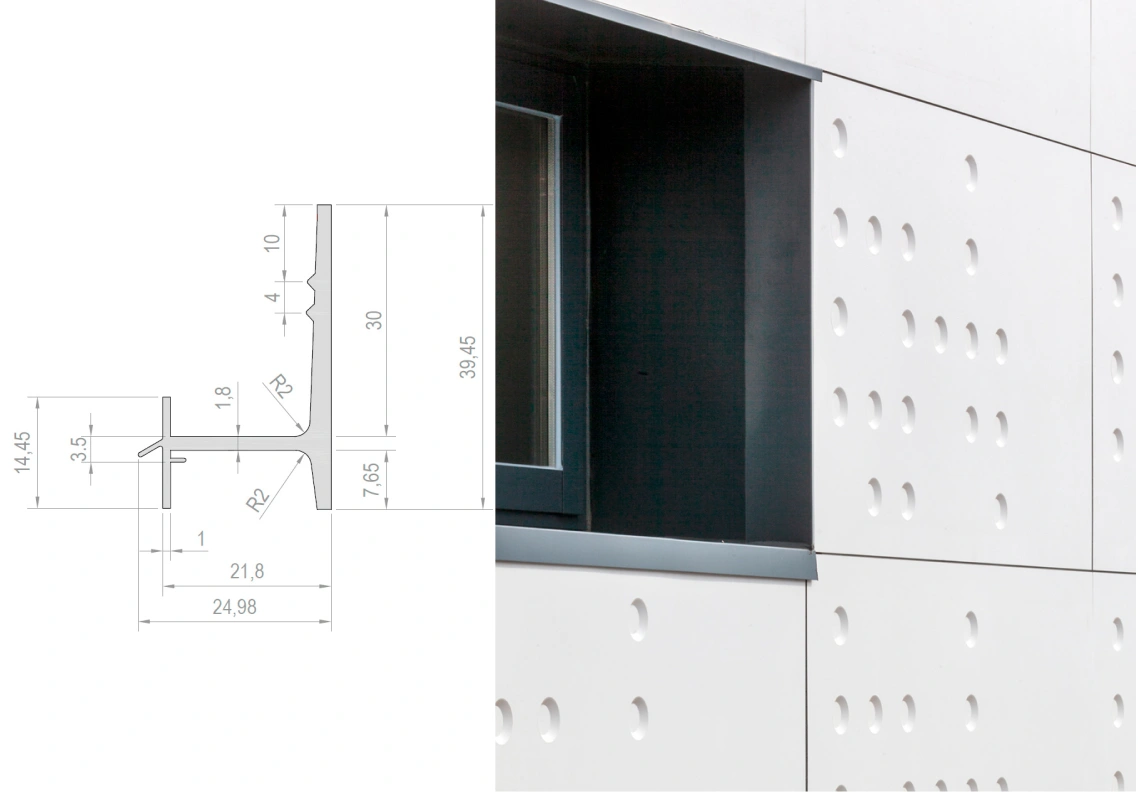

Polymer concrete window surrounds

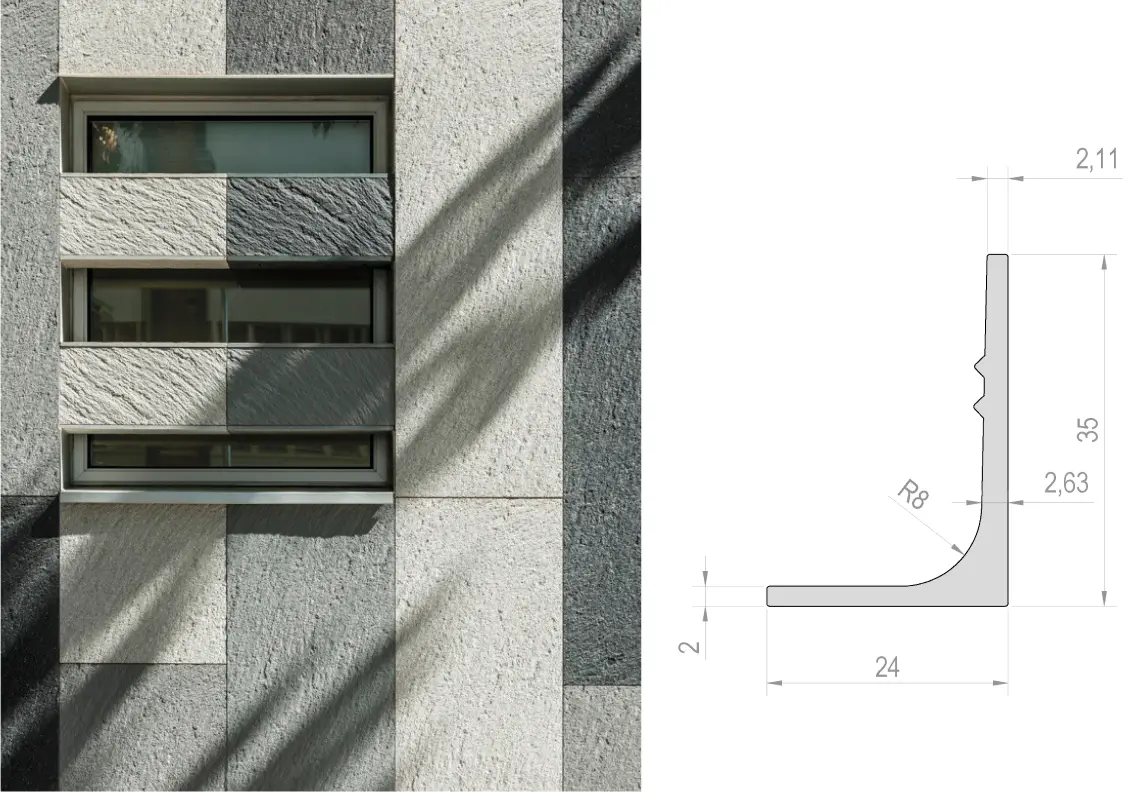

Composite window surrounds
