F400MF

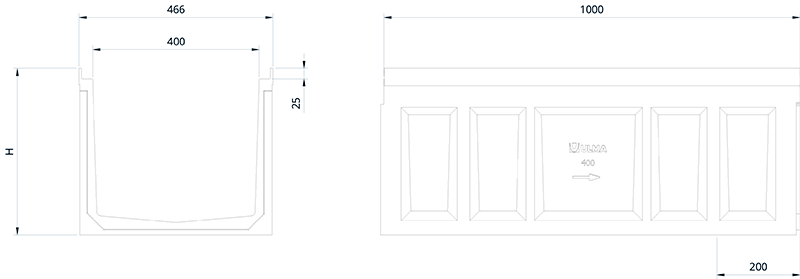

ULMA Linear Drainage Channel type F400MF: External width 466-494 mm; Internal width 400 mm; Available with overall heights of 400 mm, to collect rainwater in 1 metre long units. Safe locking system consists of eight bolts per LM; Ductile iron frame.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| F400MF00R | 1000mm | 400mm | 466mm | 400mm | 315mm | - | 1312 | 9 | 85.69 | 100 | DWG | |
| F400MF40R | 1000mm | 700mm | 494mm | 400mm | 315mm | - | 2490 | 4 | 129.16 | 280.5 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX400FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX400FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | D-400 | FC400FTDM | 8 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AMF400 Sump Unit drawing | DWG | |
| AMF400S+A400B Sump Unit drawing | DWG | |
| F400MF40RS+A400B Sump Unit drawing | DWG | |
| Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
| Installation details. Asphalt Transversal to the traffic direction | DWG | |
| Installation details. Concrete Longitudinal to the traffic direction | DWG | |
| Installation details. Concrete Transversal to the traffic direction | DWG | |
