Rapidself150
ULMA polymer concrete linear drainage channel model Rapidself SR150.
Self-cleaning optimized V-shaped V+ section.
Push or click locking system, no bolts.
Horizontal alignment tongue and groove system and preformed perimeter groove to facilitate sealing gasket installation.
Load class up to C250, EN 1433 Standard.
CE marking, Declaration of Performance (DoP) and compliance with the EN 1433 standard.

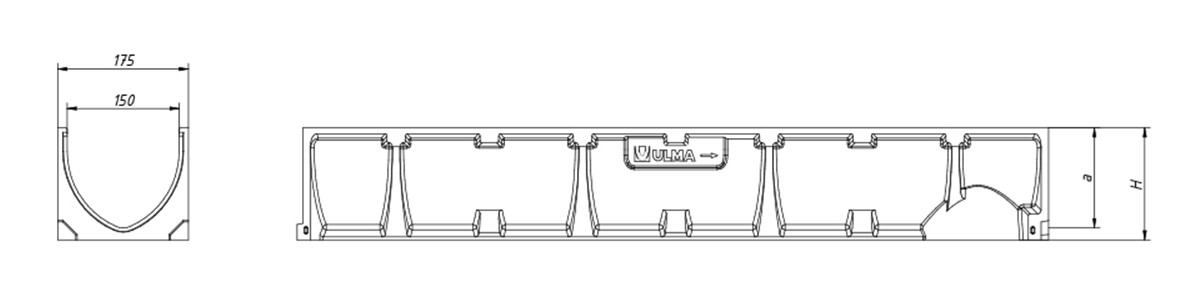

External width 175 mm, internal width 150 mm and total length 1000 mm. Total external heights available between 75 mm y 150 mm.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Units
(x pallet) |
||||
|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | ||||||
| SR150H75R | 1000 | 75 | 175 | 150 | 160 | - | 42 | DWG | |
| SR150H150R | 1000 | 150 | 175 | 150 | 160 | - | 33 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted | B-125 | FNX150SRBM | 4 x ml | DWG | |
| Ductile Cast Iron | Slotted | C-250 | FNX150SRCM | 8 x ml | DWG | |
| Galvanized Steel | Slotted | A-15 | GN150SRA | 4 x ml | DWG | |
| Galvanized Steel | Mesh | B-125 | GEX150SRB | 4 x ml | DWG | |
| Galvanized Steel | Mesh heelproof | B-125 | GEHX150SRB | 4 x ml | DWG | |
| Stainless Steel | Slotted | A-15 | IN150SRA | 4 x ml | DWG | |
| INSTALLATION DETAILS | ||
|---|---|---|
| Installatrion details. Paver | DWG | |
| Installatrion details. Asphalt | DWG | |
| Installatrion details. Concrete | DWG | |
