D100

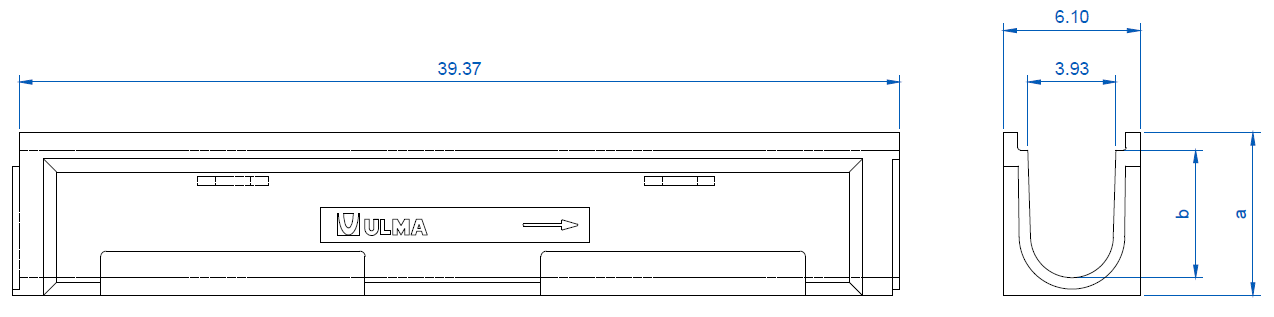

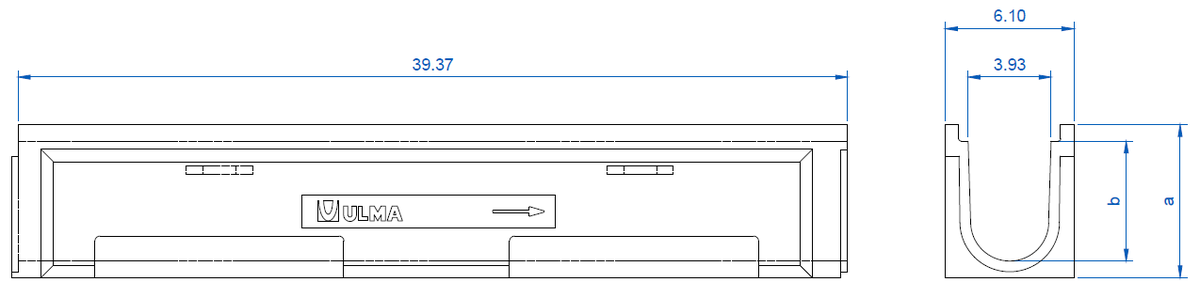

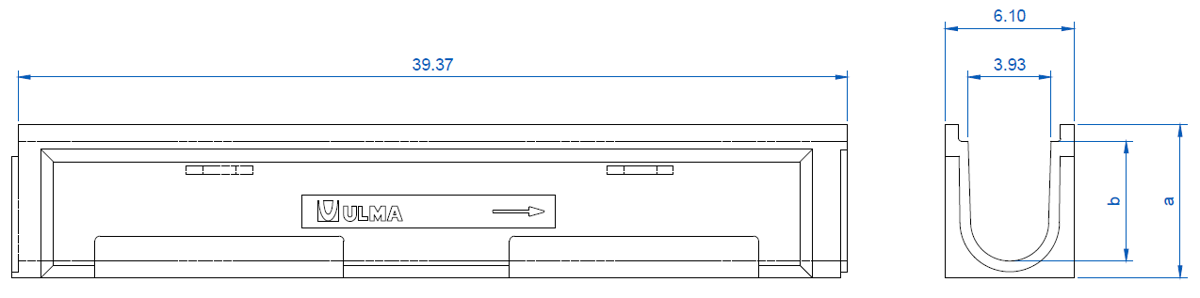

Polymer concrete Linear Drainage Channel ULMA, type D100: External width 6.10 inches; Internal width 3.93 inches; Available with overall heights between 5.51 inches and 9.25 inches. Suitable for cascaded type slope to collect rain water in 39.37 inches long units. Locking system consists of locking bar CS100 and screws, with polymer concrete stepped edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Weight
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| D100.00 | 39.37in | 5.51in | 6.10in | 3.93in | 4in | - | 13.33 | 78.0 | 34.61lbs | 3.00 [0.11] | DWG | |
| D100.05 | 39.37in | 6.29in | 6.10in | 3.93in | 4in | - | 16.43 | 65.0 | 39.02lbs | 4.14 [0.15] | DWG | |
| D100.10 | 39.37in | 7.28in | 6.10in | 3.93in | 4in | 4in | 20.15 | 65.0 | 41lbs | 5.78 [0.20] | DWG | |
| D100.15 | 39.37in | 8.26in | 6.10in | 3.93in | 4in | 4in | 22.48 | 52.0 | 41.88lbs | 7.53 [0.27] | DWG | |
| D100.20 | 39.37in | 9.25in | 6.10in | 3.93in | 4in | 4in | 27.59 | 52.0 | 50.04lbs | 9.46 [0.33] | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | B-125 | FNX100KCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX100KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Ductile Cast Iron | Slotted (Heelproof) | C-250 | FNHX100KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Slotted (Standard) | A-15 | GN100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX100KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX100KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Slotted (Standard) | A-15 | IN100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP100KCA | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Slotted (Heelproof) | A-15 | PNH100KCAM-GRIS | 2 locking bars and 2 screws per linear metre | DWG | |
| Composite | Mesh (Standard) | B-125 | PE100KCBM | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AD100 Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
