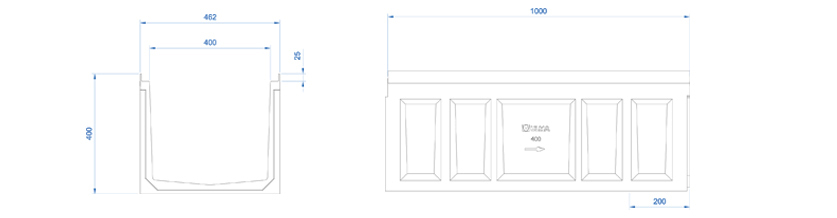

ULMA Linear Drainage Channel type F400K: External width 462 mm; Internal width 400 mm; Available with overall heights of 400 mm, to collect rainwater in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel* edges for lateral protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
F400K00R 1000mm 400mm 462mm 400mm 315mm - 1312 9 85.69 100 DWG PDF
F400K40R 1000mm 700mm 494mm 400mm 315mm - 2490 4 129.16 280.5 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) D-400 FNX400FTDM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) F-900 FNX400FTFM 8 screws per metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AF400 Sump Unit drawing DWG PDF
AF400S+A400B Sump Unit drawing DWG PDF
F400K40RS+A400B Sump Unit drawing DWG PDF
Installation details. Asphalt Longitudinal to the traffic direction DWG PDF
Installation details. Asphalt Transversal to the traffic direction DWG PDF
Installation details. Concrete Longitudinal to the traffic direction DWG PDF
Installation details. Concrete Transversal to the traffic direction DWG PDF
