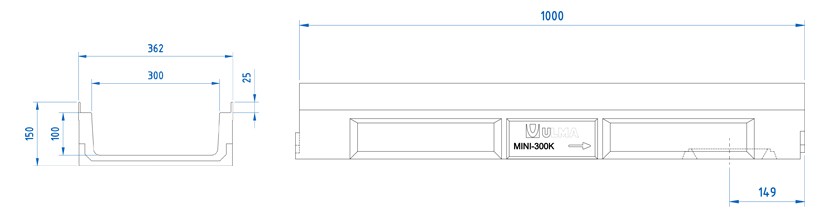

Polymer concrete Linear Drainage Channel ULMA, type M300K: External width 360mm; Internal width 300mm and overall height 150mm to collect rain water in 1 metre long units Integrated galvanized steel edges for lateral protection. Locking system consists of locking bar CS300 and screws.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
M300K 1000mm 150mm 360mm 300mm 200mm - 294 24 33.2 11.8 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX300KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX300KCB 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AK300 Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver onto a floor frame DWG PDF
