F250MF

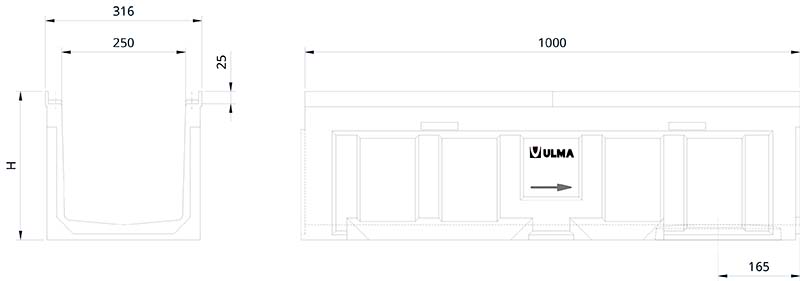

Polymer concrete Linear Drainage Channel ULMA, type F250MF: External width 316mm; Internal width 250mm; Available with overall heights between 150mm and 650mm; Suitable also with 2,5% presloped channels, cascaded or mixed slope, to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
Channel options
| CHANNEL CODE |
L
(mm) |
Alt total
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| F250MF01RM | 500mm | 150mm | 316mm | 250mm | - | - | 220.0 | - | 19.86 | - | DWG | |
| F250MF00R | 1000mm | 300mm | 316mm | 250mm | 250.0 | - | 580.0 | 28.0 | 47.13 | 38.5 | DWG | |
| F250MF10R | 1000mm | 350mm | 316mm | 250mm | 250.0 | - | 700.0 | 28.0 | 49.64 | 51.5 | DWG | |
| F250MF20R | 1000mm | 400mm | 316mm | 250mm | 250.0 | - | 820.0 | 21.0 | 55.02 | 65.6 | DWG | |
| F250MF30R | 1000mm | 450mm | 316mm | 250mm | - | - | 935.0 | 14.0 | 63.22 | 80.9 | DWG | |
| F250MF40R | 1000mm | 650mm | 316mm | 250mm | 250.0 | - | 1383.0 | 8.0 | 91,1 | 151,7 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX250FTCM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | D-400 | FNX250FTDM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Slotted (Standard) | F-900 | FNX250FTFM | 8 screws per metre | DWG | |
| Ductile Cast Iron | Solid | F-900 | FC250FTFM | 8 screws per metre | DWG | |
| Galvanized Steel | Single Slot | D-400 | GRL250FOD | 8 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AF250 Sump Unit drawing | DWG | |
| AF250S + A250B Sump Unit drawing | DWG | |
| AF250S + A250B415 Sump Unit drawing | DWG | |
| Installation details. Asphalt Longitudinal to the traffic direction | DWG | |
| Installation details. Asphalt Transversal to the traffic direction | DWG | |
| Installation details. Concrete Longitudinal to the traffic direction | DWG | |
| Installation details. Concrete Transversal to the traffic direction | DWG | |
| Installation details. Installation beside Kerb | DWG | |
