Rapidself100
ULMA polymer concrete linear drainage channel model Rapidself SR100.
Self-cleaning optimized V-shaped V+ section.
Push or click locking system, no bolts.
Horizontal alignment tongue and groove system and preformed perimeter groove to facilitate sealing gasket installation.
Load class up to C250, EN 1433 Standard.
CE marking, Declaration of Performance (DoP) and compliance with the EN 1433 standard.

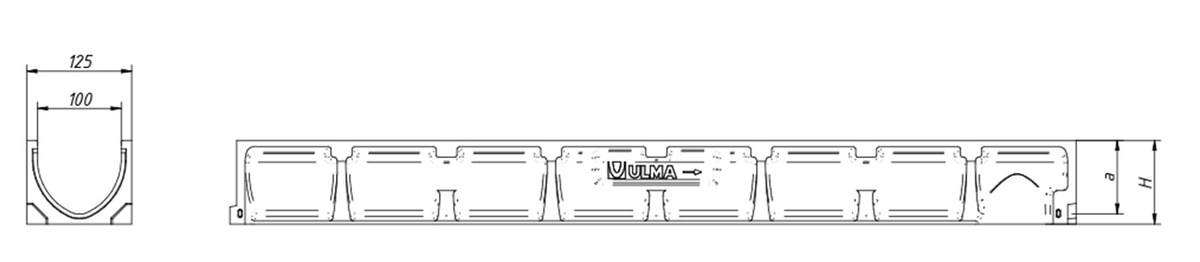

External width 125 mm, internal width 100 mm and total length 1000 mm. Total external heights available between 50 mm y 150 mm.
Channel options
| CHANNEL CODE |
L
(mm) |
Height
(mm) |
Width (mm) | Output Diam. (mm) |
Units
(x pallet) |
||||
|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | ||||||
| SR100H50R | 1000 | 50 | 125 | 100 | 110 | - | 72 | DWG | |
| SR100H75R | 1000 | 75 | 125 | 100 | 110 | - | 75 | DWG | |
| SR100H100R | 1000 | 100 | 125 | 100 | 110 | - | 60 | DWG | |
| SR100H125R | 1000 | 125 | 125 | 100 | 110 | - | 60 | DWG | |
| SR100H150R | 1000 | 150 | 125 | 100 | 110 | - | 60 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted | B-125 | FNX100SRBM | 4 x ml | DWG | |
| Ductile Cast Iron | Slotted | C-250 | FNX100SRCM | 8 x ml | DWG | |
| Galvanized Steel | Slotted | A-15 | GN100SRA | 4 x ml | DWG | |
| Galvanized Steel | Slotted heelproof | A-15 | GNH100SRA | 4 x ml | DWG | |
| Galvanized Steel | Perforated | K-3 | GP100SRA | 4 x ml | DWG | |
| Galvanized Steel | Mesh | B-125 | GEX100SRB | 4 x ml | DWG | |
| Galvanized Steel | Mesh heelproof | B-125 | GEHX100SRB | 4 x ml | DWG | |
| Stainless Steel | Slotted | A-15 | IN100SRA | 4 x ml | DWG | |
| Stainless Steel | Slotted heelproof | A-15 | INH100SRA | 4 x ml | DWG | |
| Stainless Steel | Perforated | K-3 | IP100SRA | 4 x ml | DWG | |
| Stainless Steel | Mesh heelproof | B-125 | IEHX100SRB | 4 x ml | DWG | |
| Composite | Slotted longitudinal black | A-15 | PNLH100SRAM | 4 x ml | DWG | |
| Composite | Slotted longitudinal grey | A-15 | PNLH100SRAM-GRIS | 4 x ml | DWG | |
| Composite | Slotted longitudinal beige | A-15 | PNLH100SRAM-BG | 4 x ml | DWG | |
| INSTALLATION DETAILS | ||
|---|---|---|
| Installatrion details. Paver | DWG | |
| Installatrion details. Asphalt | DWG | |
| Installatrion details. Concrete | DWG | |
