M200K

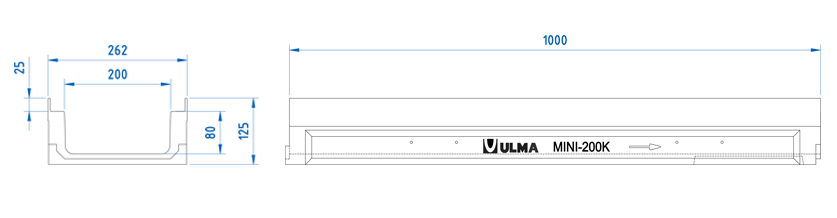

Polymer concrete Linear Drainage Channel ULMA, type M200K: External width 260mm; Internal width 200mm and overall height 125mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of 2 screws per metre.
Channel options
| CHANNEL CODE |
L
(mm) |
Alt total
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| M200K | 1000mm | 125mm | 260mm | 200mm | 160mm | - | 157.0 | 40.0 | 27.25 | 5.5 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX200KCCM | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX200KCB | 2 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AK200 Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
