M150K

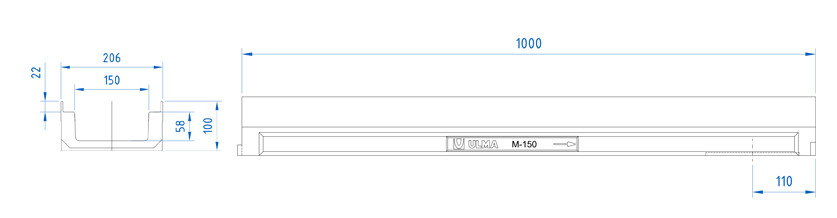

Polymer concrete Linear Drainage Channel ULMA, type M150K: External width 204mm; Internal width 150mm and overall height 100mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of 2 screws per metre.
Channel options
| CHANNEL CODE |
L
(mm) |
Alt total
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| M150K | 1000mm | 100mm | 204mm | 150mm | 160mm | - | 89.0 | 60.0 | 18.23 | 2.5 | DWG | |
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX150KCCM | 2 screws per metre | DWG | |
| Galvanized Steel | Perforated | A-15 | GP150KCA | 2 screws per metre | DWG | |
| Galvanized Steel | Mesh (Heelproof) | B-125 | GEHX150KCB | 2 screws per metre | DWG | |
| Stainless Steel | Perforated | A-15 | IP150KCA | 2 screws per metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| ASELF200K Sump Unit drawing | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Asphalt onto a floor frame | DWG | |
| Installation details. Concrete onto a floor frame | DWG | |
| Installation details. Paver onto a floor frame | DWG | |
