U100K

U100K

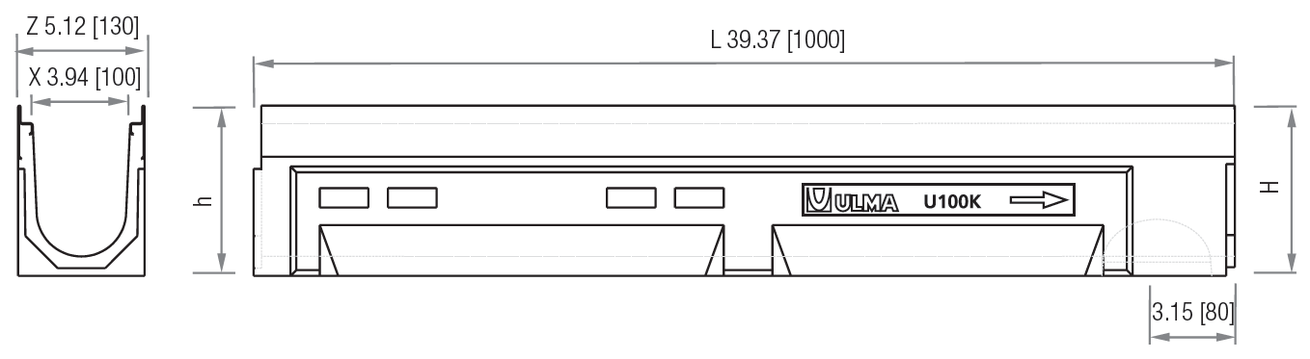

Polymer concrete Linear Drainage Channel ULMA, type U100K: External width 130mm; Internal width 100mm; Available with overall heights between 150mm and 300mm; Suitable also with 0,5% presloped or cascaded slope, to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS100 locking bar and screws.

Technical data sheet

Channel options

CHANNEL CODE L
(mm) 		Alt total
(mm) 		Width (mm) Output Diam. (mm) Hydraulic section
(cm) 		Units
(x pallet) 		Peso
(Kg) 		Qref
(l/s)
Exterior Interior Vert. Horiz.
U100K00R 1000mm 150mm 130mm 100mm 110.0 97.0 90.0 14.09 3.5 DWG PDF
U100K01 101.0 90.0 14.89125 6.01792 DWG PDF
U100K02 106.0 90.0 15.222515 6.45161 DWG PDF
U100K03 111.0 78.0 15.884 6.74009 DWG PDF
U100K04 116.0 78.0 15.6959 7.18296 DWG PDF
U100K05 120.0 78.0 16.16615 7.48873 DWG PDF
U100K05R 1000mm 175mm 130mm 100mm 110.0 120.0 78.0 16.42531 5.0 DWG PDF
U100K06 125.0 65.0 16.6155 7.79986 DWG PDF
U100K07 130.0 65.0 17.0335 8.28576 DWG PDF
U100K08 135.0 65.0 17.81725 8.59833 DWG PDF
U100K09 140.0 65.0 18.112985 8.92735 DWG PDF
U100K10 145.0 65.0 17.956235 9.45759 DWG PDF
U100K10R 1000mm 200mm 130mm 100mm 110.0 110.0 145.0 65.0 18.01371 6.7 DWG PDF
U100K11 150.0 65.0 18.583235 9.79376 DWG PDF
U100K12 155.0 65.0 18.827765 DWG PDF
U100K13 159.0 65.0 18.96675 DWG PDF
U100K14 164.0 65.0 19.314735 DWG PDF
U100K15 169.0 65.0 19.84246 DWG PDF
U100K15R 1000mm 225mm 130mm 100mm 110.0 110.0 169.0 65.0 19.84246 8.5 DWG PDF
U100K16 174.0 65.0 19.993985 DWG PDF
U100K17 178.0 65.0 20.63875 DWG PDF
U100K18 183.0 52.0 21.126765 DWG PDF
U100K19 188.0 52.0 21.352485 DWG PDF
U100K20 193.0 52.0 22.10175 DWG PDF
U100K20R 1000mm 250mm 130mm 100mm 110.0 110.0 193.0 52.0 22.32956 10.5 DWG PDF
U100K25R 1000mm 275mm 130mm 100mm 110.0 110.0 240.0 52.0 23.07151 12.6 DWG PDF
U100K30R 1000mm 300mm 130mm 100mm 110.0 110.0 288.0 52.0 26.14381 14.9 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX100KCBM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX100KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Heelproof) C-250 FNHX100KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX100KCB 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX100KCB 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Slotted (Standard) A-15 IN100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Perforated A-15 IP100KCA 2 locking bars and 2 screws per linear metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM 2 locking bars and 2 screws per linear metre DWG PDF
Composite Slotted (Heelproof) A-15 PNH100KCAM-GRIS 2 locking bars and 2 screws per linear metre DWG PDF
Composite Mesh (Standard) B-125 PE100KCBM 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AK100 Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Installation beside Kerb DWG PDF
