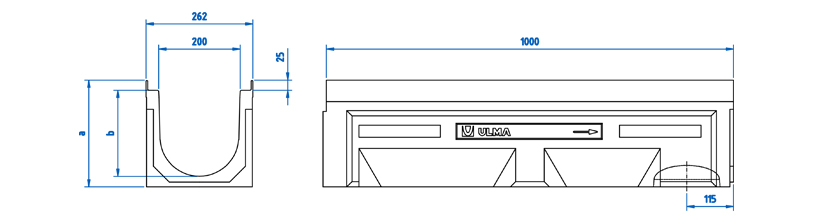

Polymer concrete Linear Drainage Channel ULMA, type U200K: External width 260mm; Internal width 200mm; Suitable for cascade type slope and available with overall heights between 263mm and 363mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS200 locking bar and screws.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
U200K00R 1000mm 263mm 260mm 200mm 160.0 374.0 28.0 42.5733 21.36993 DWG PDF
U200K10R 1000mm 313mm 260mm 200mm 160.0 160.0 473.0 21.0 48.2163 30.74646 DWG PDF
U200K20R 1000mm 363mm 260mm 200mm 160.0 571.0 21.0 53.57715 41.2674 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX200KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX200KCB 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AK200 Sump Unit drawing DWG PDF
AK200S+A200I+A200B Sump Unit drawing DWG PDF
AK200S+A200B Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Installation beside Kerb DWG PDF
