U200K

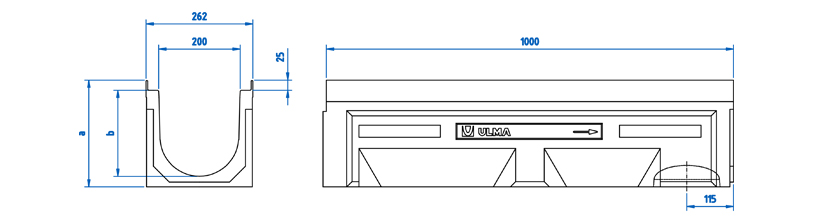

Polymer concrete Linear Drainage Channel ULMA, type U200K: External width 260mm; Internal width 200mm; Suitable for cascade type slope and available with overall heights between 263mm and 363mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS200 locking bar and screws.
Channel options
| CHANNEL CODE |
L
(mm) |
Alt total
(mm) |
Width (mm) | Output Diam. (mm) |
Hydraulic section
(cm) |
Units
(x pallet) |
Peso
(Kg) |
Qref
(l/s) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior | Interior | Vert. | Horiz. | |||||||||
| U200K00R | 1000mm | 263mm | 260mm | 200mm | 160.0 | 374.0 | 28.0 | 42.5733 | 21.36993 | DWG | ||
| U200K10R | 1000mm | 313mm | 260mm | 200mm | 160.0 | 160.0 | 473.0 | 21.0 | 48.2163 | 30.74646 | DWG | |
| U200K20R | 1000mm | 363mm | 260mm | 200mm | 160.0 | 571.0 | 21.0 | 53.57715 | 41.2674 | DWG | ||
Grating options
| Material | Design | Load Class | Code | How to fix | ||
|---|---|---|---|---|---|---|
| Ductile Cast Iron | Slotted (Standard) | C-250 | FNX200KCCM | 2 locking bars and 2 screws per linear metre | DWG | |
| Galvanized Steel | Mesh (Standard) | B-125 | GEX200KCB | 2 locking bars and 2 screws per linear metre | DWG | |
| SUMP UNITS AND INSTALLATION DETAILS | ||
|---|---|---|
| AK200 Sump Unit drawing | DWG | |
| AK200S+A200I+A200B Sump Unit drawing | DWG | |
| AK200S+A200B Sump Unit drawing | DWG | |
| Installation details. Paver | DWG | |
| Installation details. Paver onto a load-bearing slab | DWG | |
| Installation details. Asphalt | DWG | |
| Installation details. Concrete | DWG | |
| Installation details. Installation beside Kerb | DWG | |
