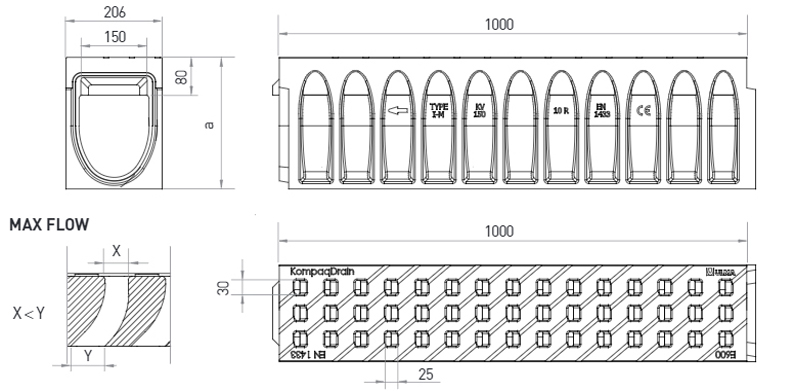

Linear Drainage Channel model ULMA KompaqDrain® Industry KVE150, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal – proof and corrosion resistant. Load class up to E-600 with surface design without protuberances to avoid vibrations in crossing vehicles, 30 x 25 mm uptake holes. With “V” optimized shaped and capture holes with MAX-FLOW® geometry: self cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes. Male and female horizontal and vertical alignment and perimetral preformed groove to facilitate joint sealing in 360º. The register and the sump unit include: cast iron grating FNX150FTEM, lateral preforms for horizontal outlets on each side and lateral preforms for connections in T, L and in cross.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
KVE150.10R 1000mm 280mm 206mm 150mm 227.0 15.0 59.0 11.46 DWG PDF
KVE150.20R 1000mm 380mm 206mm 150mm 377.0 15.0 69.0 25.11 DWG PDF
KVE150.30R 1000mm 480mm 206mm 150mm 527.0 10.0 80.0 42.19 DWG PDF
INSTALLATION DETAILS
Installation details. Asphalt Longitudinal to the traffic direction up to loading class D400 DWG PDF
Installation details. Asphalt Longitudinal to the traffic direction for loading class E600 DWG PDF
Installation details. Asphalt Transversal to the traffic direction up to loading class C250 DWG PDF
Installation details. Asphalt Transversal to the traffic direction for loading class D400 and E600 DWG PDF
Installation details. Concrete Longitudinal to the traffic direction DWG PDF
Installation details. Concrete Transversal to the traffic direction DWG PDF
