Full LM consist of 1 polymer concrete linear drainage channel ULMA, to collect rainwater, type MINIKIT, external width 120mm, internal width 98mm and overall height 50mm. 1 Units of Galvanized Steel Normal Slotted (Runway) grating, type GNS100UOA, up to A-15 load class, according to EN-1433 Standard. Channel - grating locking system “click” type without screw.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.

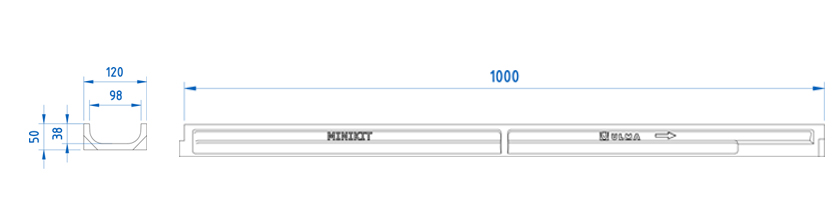

MINIKIT 1000mm 50mm 120mm 98mm 110mm - 34.0 126 (with grating) 4.69 0.5 DWG PDF

Grating options

Material Design Load Class Code How to fix
Galvanized Steel Slotted (Standard) A-15 GNS100UOA Click. Without screws DWG PDF
INSTALLATION DETAILS
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Paver DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver onto a floor frame DWG PDF
