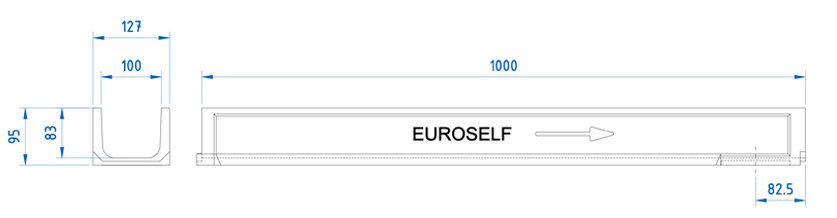

Polymer concrete Linear Drainage Channel ULMA, type EUROSELF: External width 127mm; Internal width 100mm and overall height 95mm to collect rain water in 1 metre long units. Locking system consist of locking bar and screws.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
EUROSELF 1000mm 95mm 127mm 100mm 110.0 - 80.0 120.0 6.93 2.7 DWG PDF

Grating options

Material Design Load Class Code How to fix
Galvanized Steel Slotted (Standard) A-15 GN100UOA Without screws DWG PDF
Galvanized Steel Single Slot C-250 GR100UOC Without screws DWG PDF
Galvanized Steel Double Slot C-250 GDR100UOC Without screws DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AEURO100 Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver with Slot grating DWG PDF
Installation details. Paver onto a floor frame DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
