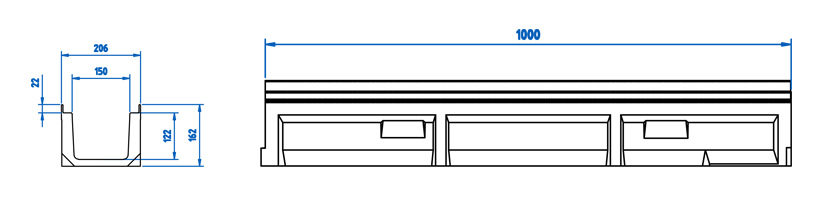

Polymer concrete Linear Drainage Channel ULMA, type SELF200K: External width 204mm; Internal width 150mm and overall height 162mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of locking bar CS150 and screws.

* Also available with stainless steel edge protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
SELF200K 1000mm 162mm 204mm 150mm 160.0 - 180.0 40.0 19.7 7.6 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX150KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP150KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX150KCB 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Perforated A-15 IP150KCA 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
ASELF200K Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a floor frame DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
