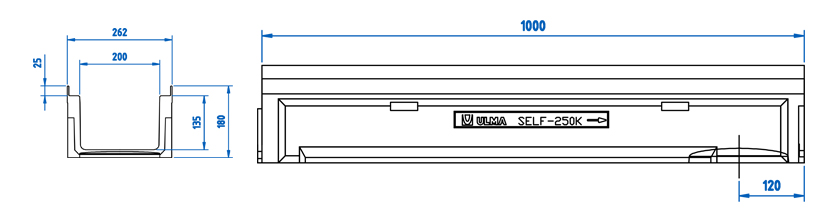

Polymer concrete Linear Drainage Channel ULMA, type SELF250K: External width 260mm; Internal width 200mm and overall height 180mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of locking bar CS200 and screws

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
SELF250K 1000mm 180mm 260mm 200mm 160/200 - 260.0 28.0 27.51 12.6 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX200KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX200KCB 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
ASELF250K Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a floor frame DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
