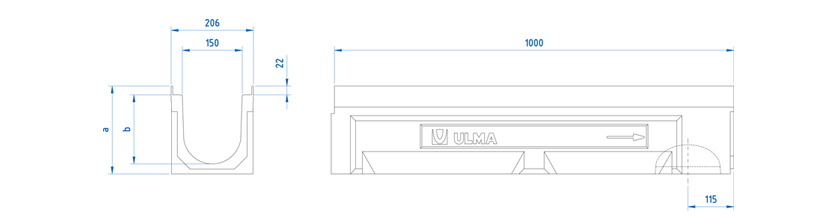

Polymer concrete Linear Drainage Channel ULMA, type U150K: External width 204mm; Internal width 150mm; Suitable for cascade type slope and available with overall heights between 220mm and 320mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS150 locking bar and screws.

* Also available with stainless edge protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
U150K00R 1000mm 220mm 204mm 150mm 160mm 230.0 45.0 28.4658 11.81793 DWG PDF
U150K10R 1000mm 270mm 204mm 150mm 160mm 305.0 36.0 35.1538 18.10455 DWG PDF
U150K20R 1000mm 320mm 204mm 150mm 160mm 160.0 380.0 27.0 38.63365 25.27618 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX150KCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Perforated A-15 GP150KCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX150KCB 2 locking bars and 2 screws per linear metre DWG PDF
Stainless Steel Perforated A-15 IP150KCA 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AK150S+A150I+A150B Sump Unit drawing DWG PDF
AK150S+A150B Sump Unit drawing DWG PDF
AK150 Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Installation beside Kerb DWG PDF
