U200

U200

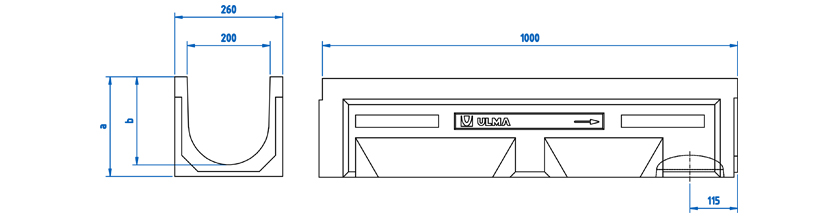

Polymer concrete Linear Drainage Channel ULMA, type U200: External width 260mm; Internal width 200mm; Available with overall heights between 240mm and 340mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Locking system consists of locking bar CS200 and screws.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
U200.00R 1000mm 240mm 260mm 200mm 160.0 374.0 28.0 39.17287 21.36993 DWG PDF
U200.10R 1000mm 290mm 260mm 200mm 160.0 473.0 28.0 46.12212 30.74646 DWG PDF
U200.20R 1000mm 340mm 260mm 200mm 160.0 571.0 21.0 53.54162 41.2674 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) C-250 FNX200UCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Slotted (Standard) A-15 GN200UCA 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX200UCB33 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Heelproof) B-125 GEHX200UCB 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AU200 Sump Unit drawing DWG PDF
AU200S+A200I+A200B Sump Unit drawing DWG PDF
AU200S+A200B Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver with Slot grating DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Installation beside Kerb DWG PDF
