S200F

S200F

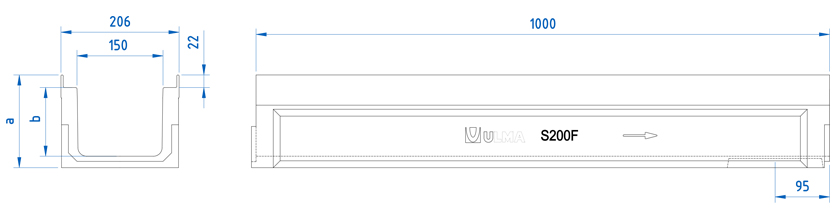

Polymer concrete Linear Drainage Channel ULMA, type S200F: External width 204mm; Internal width 150mm and overall height of 162mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qref
(l/s)
Exterior Interior Vert. Horiz.
S200F 1000mm 162mm 204mm 150mm 160mm - 180.0 40.0 21.55 7.6 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) D-400 FNX150FTDM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) E-600 FNX150FTEM 8 screws per metre DWG PDF
Ductile Cast Iron Slotted (Standard) F-900 FNX150FTFM 8 screws per metre DWG PDF
Ductile Cast Iron Solid F-900 FC150FTFM 8 screws per metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AS200F Sump Unit drawing DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Concrete DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
Installation details. Paver onto a floor frame DWG PDF
