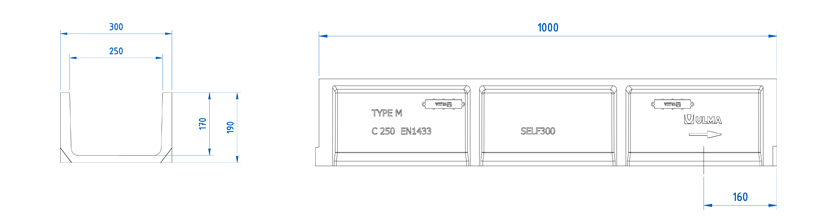

Polymer concrete Linear Drainage Channel ULMA, type SELF300: External width 300mm; Internal width 250mm and overall height 190mm to collect rain water in 1 metre long units. Locking system consists of locking bar CS250 and screws.

Channel options

CHANNEL CODE L
(mm)
Alt total
(mm)
Width (mm) Output Diam. (mm) Hydraulic section
(cm)
Units
(x pallet)
Peso
(Kg)
Qmax
(l/s)
Exterior Interior Vert. Horiz.
SELF300 1000mm 190mm 300mm 250mm 200.0 - 407.0 35.0 26.16 22.5 DWG PDF

Grating options

Material Design Load Class Code How to fix
Ductile Cast Iron Slotted (Standard) B-125 FNX250UCBM 2 locking bars and 2 screws per linear metre DWG PDF
Ductile Cast Iron Slotted (Standard) C-250 FNX250UCCM 2 locking bars and 2 screws per linear metre DWG PDF
Galvanized Steel Mesh (Standard) B-125 GEX250UCB 2 locking bars and 2 screws per linear metre DWG PDF
SUMP UNITS AND INSTALLATION DETAILS
AU250S+A250I+A250B Sump Unit drawing DWG PDF
AU250S+A250B Sump Unit drawing DWG PDF
AU250 Sump Unit drawing DWG PDF
Installation details. Paver DWG PDF
Installation details. Paver with Slot grating DWG PDF
Installation details. Paver onto a floor frame DWG PDF
Installation details. Paver onto a load-bearing slab DWG PDF
Installation details. Asphalt DWG PDF
Installation details. Asphalt onto a floor frame DWG PDF
Installation details. Concrete DWG PDF
Installation details. Concrete with Slot grating DWG PDF
Installation details. Concrete onto a floor frame DWG PDF
