Drainage system and channels

Product range

Classification by drainage channel system

Low height drainage channels MINI Drainage channels for heavy loads F Drainage channels with slope for medium traffic UK Drainage channels with V shape - MULTIV Low height drainage channels for heavy loads  S Drainage channels with slope for low traffic U Drainage channels for pedestrian areas SELF Drainage channels for sport venues SPORT Classification by drainage channel system Low height drainage channels MINI Drainage channels for heavy loads F Drainage channels with slope for medium traffic UK Drainage channels with V shape - MULTIV Low height drainage channels for heavy loads  S Drainage channels with slope for low traffic U Drainage channels for pedestrian areas SELF Drainage channels for sport venues SPORT

Classification by drainage channels load class

  • Classification by drainage channels load class a-15

    Areas which can only be used by pedestrian and pedal cyclist.

  • Classification by drainage channels load class b-125

    Footways, pedestrian areas and comparable areas, private car parks or car parking decks.

  • Classification by drainage channels load class c-250

    Curb sides and non-trafficked areas of hard shoulders and similar.

  • Classification by drainage channels load class d-400

    Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.

  • Classification by drainage channels load class e-600

    Areas subjected to high wheel loads, e.g. ports and dock sides such as forklift trucks.

  • Classification by drainage channels load class f-900

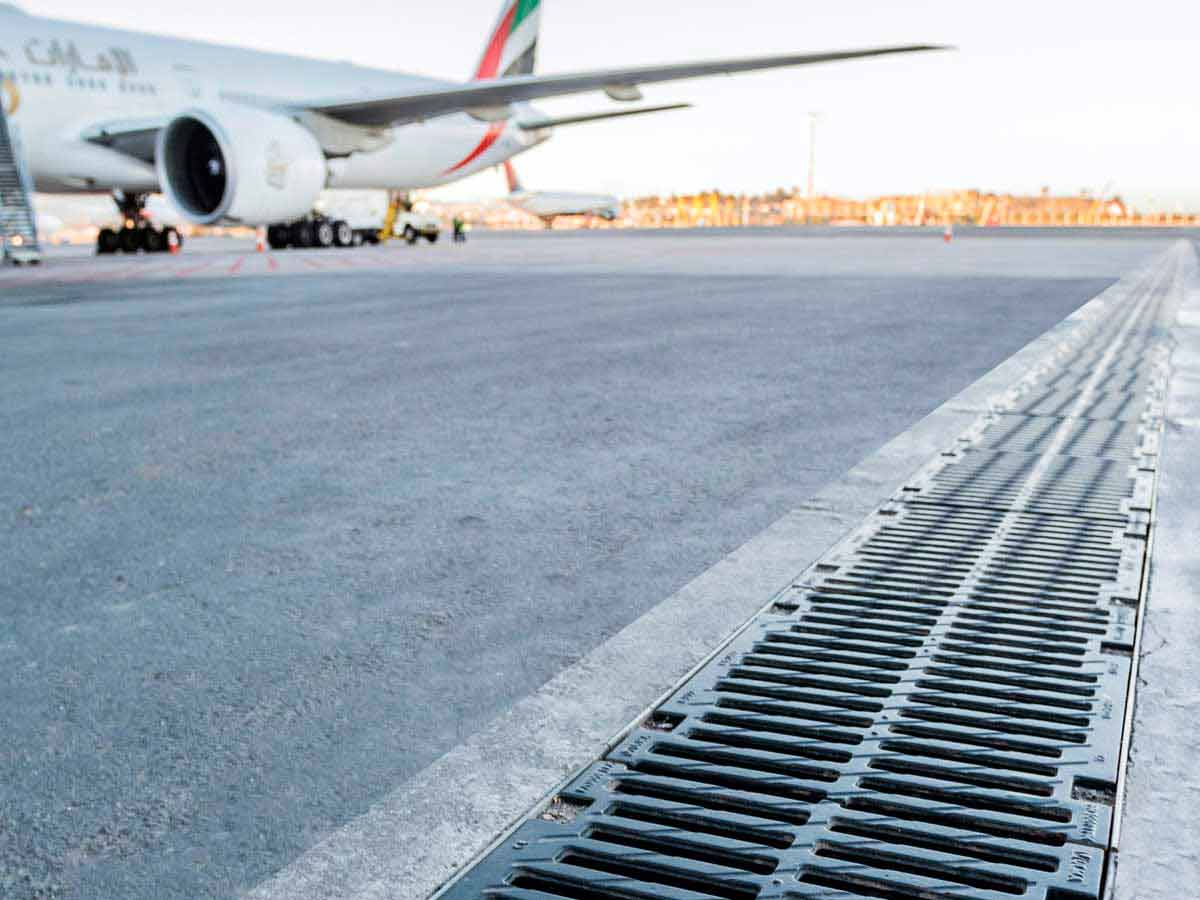

    Areas subjected to specially high wheel loads e.g. aircraft pavement.

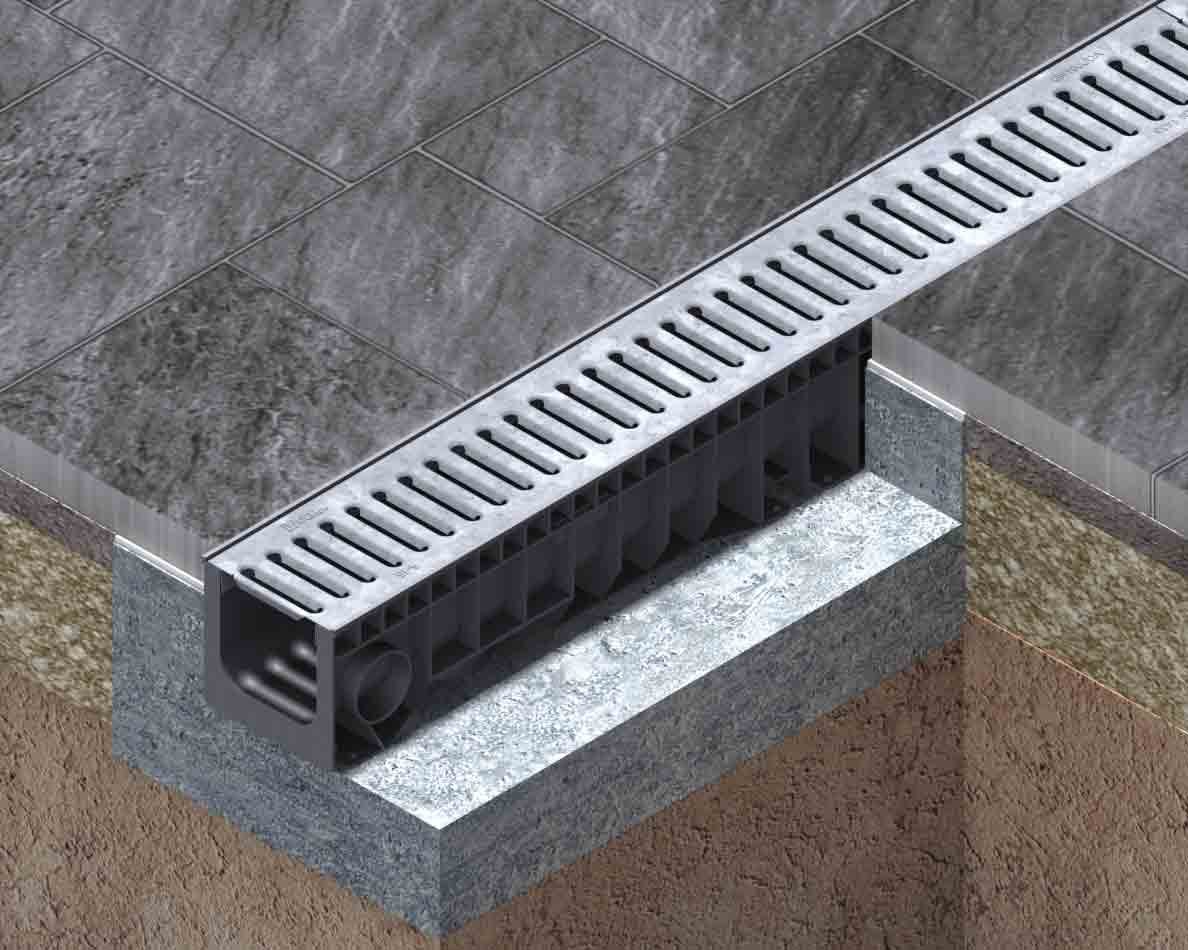

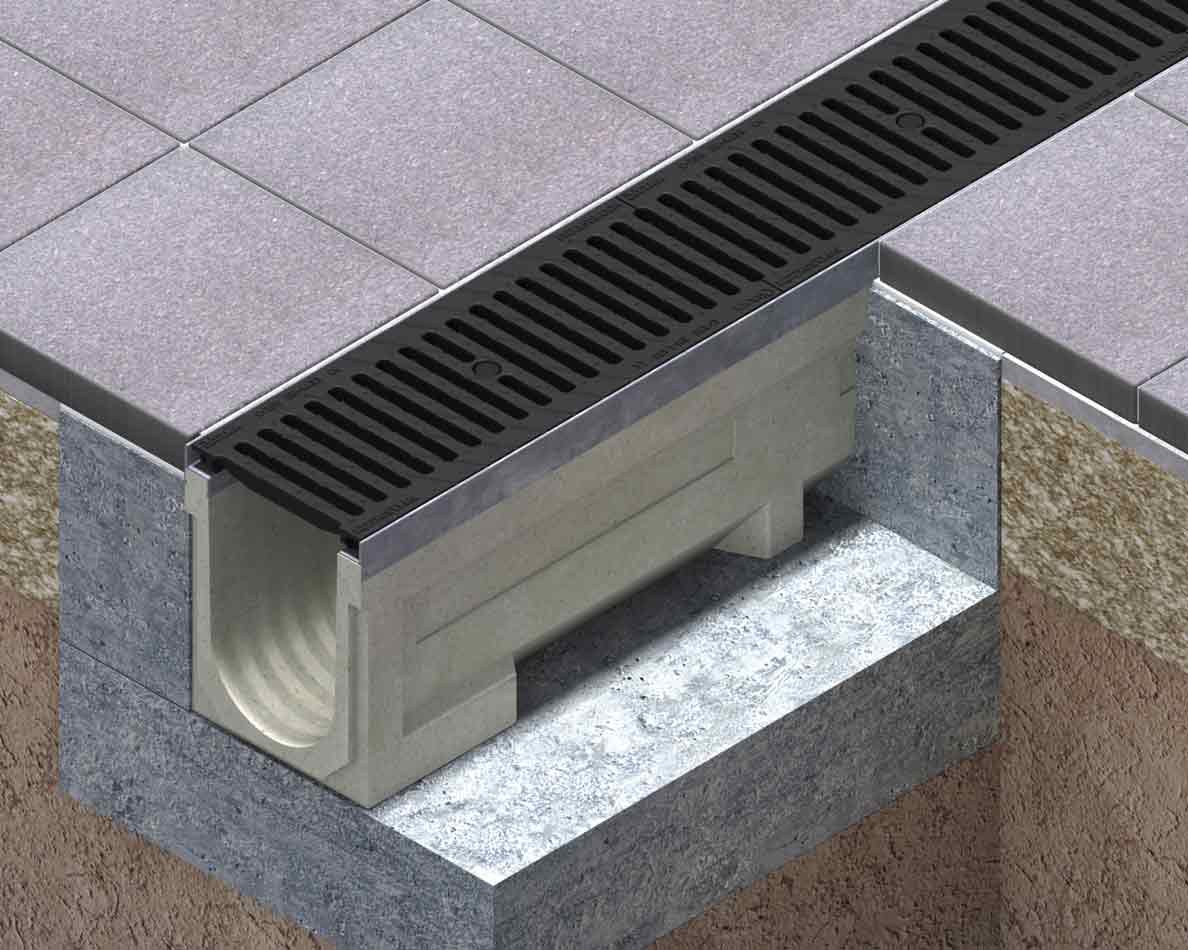

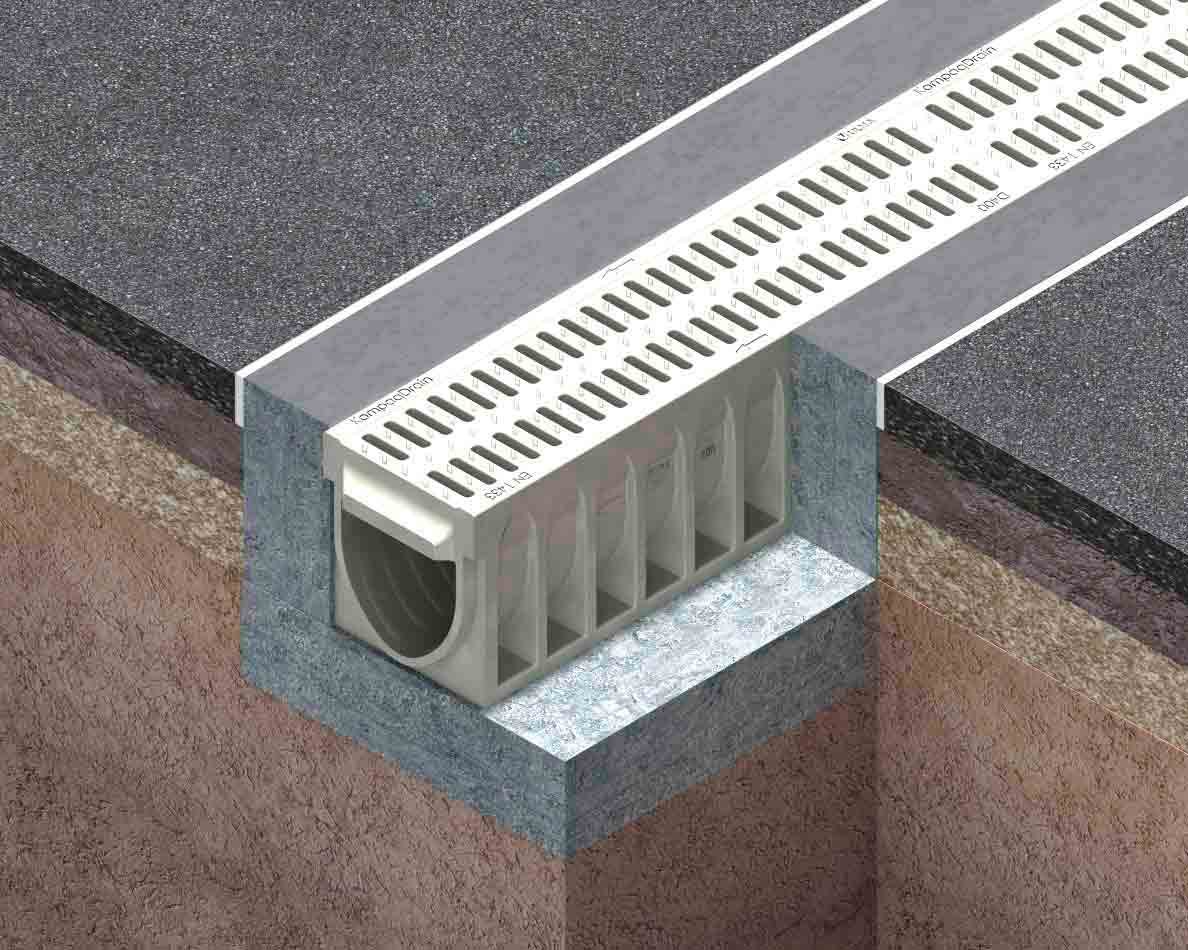

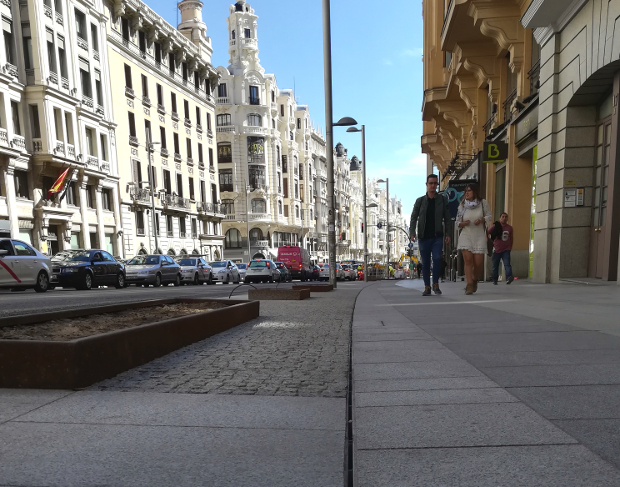

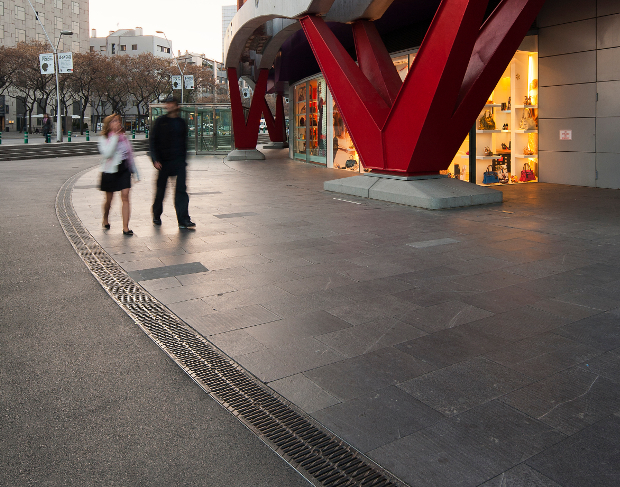

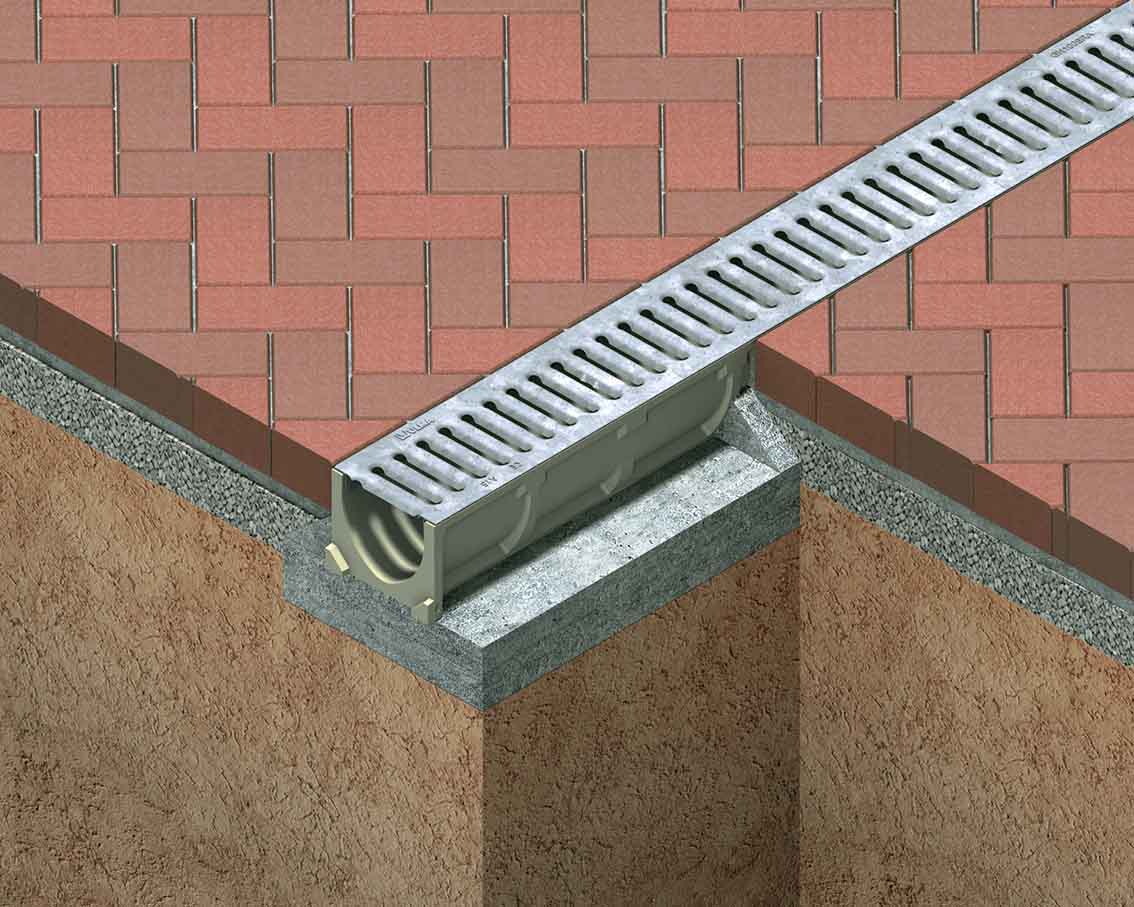

Drainage channels for pedestrian areas SELF

Pedestrian and sporadic light vehicle. In the case of it becoming more regular, the use of a channel with an edge is recommended; especially in the case of finishing off with concrete or asphalt pavement.
Applications: Inside roads, squares, recreational areas, schools, parks, gardens…. Up to load class C250 (according to the model).
Drainage channels for pedestrian areas SELF - type of load c-250 Drainage channels for pedestrian areas SELF - Applications Drainage channels for pedestrian areas SELF - Applications Drainage channels for pedestrian areas SELF - Applications Drainage channels for pedestrian areas SELF - Applications Drainage channels for pedestrian areas SELF - Applications Drainage channels for pedestrian areas SELF - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
EUROKIT

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - EUROKIT Exterior: 120mm.
Interior: 98mm.
Height: 85mm.
Without Edge
EUROSELF

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - EUROSELF Exterior: 127mm.
Interior: 100mm.
Height: 95mm.
Without Edge
EUROSELFV

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - EUROSELFV Exterior: 130mm.
Interior: 100mm.
Height: 95-145mm.
Without Edge
DOMO

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - DOMO Exterior: 130mm.
Interior: 100mm.
Height: 80mm.
Without Edge
SELF

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF Exterior: 130mm.
Interior: 100mm.
Height: 115mm.
Without Edge
SELFK

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELFK Exterior: 130mm.
Interior: 100mm.
Height: 100mm.
Galvanized Edge
SELFKX

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELFKX Exterior: 130mm.
Interior: 100mm.
Height: 100mm.
Stainless Edge
EUROSELF200

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - EUROSELF200 Exterior: 204mm.
Interior: 150mm.
Height: 70mm.
Without Edge
SELF200

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF200 Exterior: 204mm.
Interior: 150mm.
Height: 140mm.
Without Edge
SELF200K

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF200K Exterior: 204mm.
Interior: 150mm.
Height: 162mm.
Galvanized Edge
SELF200KX

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF200KX Exterior: 204mm.
Interior: 150mm.
Height: 162mm.
Stainless Edge
SELF250

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF250 Exterior: 260mm.
Interior: 200mm.
Height: 155mm.
Without Edge
SELF250K

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF250K Exterior: 260mm.
Interior: 200mm.
Height: 180mm.
Galvanized Edge
SELF300

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF300 Exterior: 310mm.
Interior: 250mm.
Height: 185mm.
Without Edge
SELF300K

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF300K Exterior: 310mm.
Interior: 250mm.
Height: 210mm.
Galvanized Edge
SELF350K

In accordance with EN-1433STANDARD
Drainage channels for pedestrian areas SELF - SELF350K Exterior: 360mm.
Interior: 300mm.
Height: 210mm.
Galvanized Edge

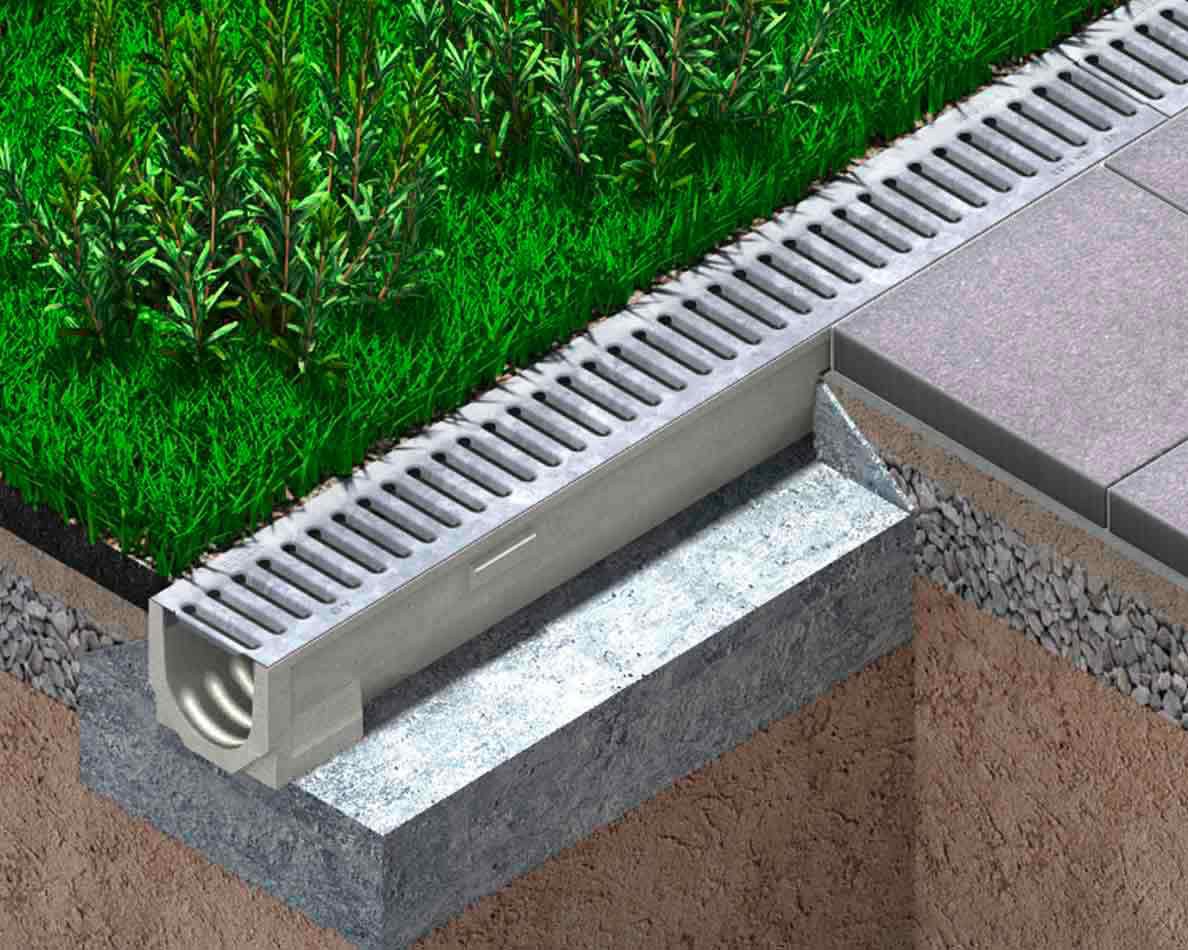

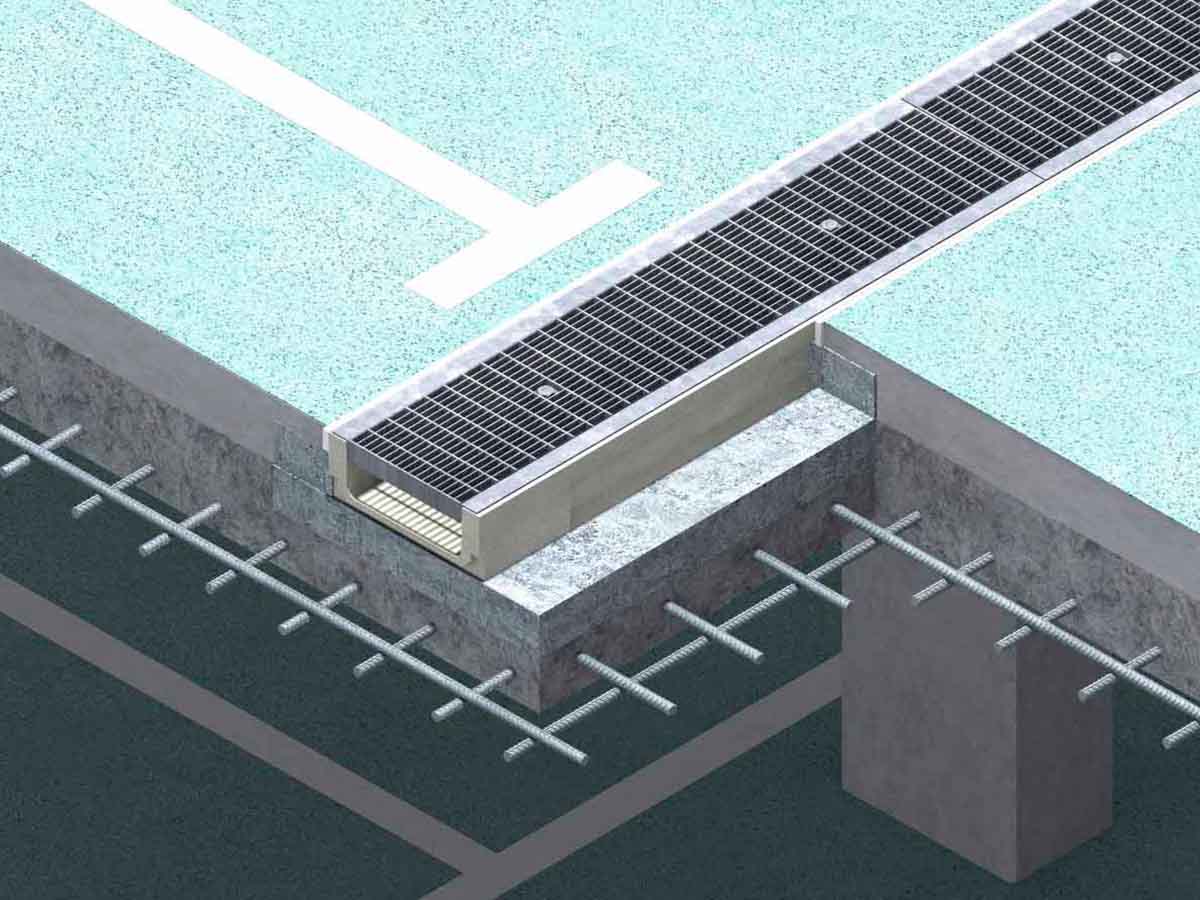

Low height drainage channels MINI

Channels designed for areas with height limitations, compatible with vehicle traffic depending upon the model.
The use of a channel with an edge is recommended if the transit of vehicles is constant.
Applications: Reinforced slabs, forged garages, basements, showers, dressing rooms, covered areas… Up to load class C250 (according to the model).
Low height drainage channels MINI - type of load c-250 Low height drainage channels MINI - Applications Low height drainage channels MINI - Applications Low height drainage channels MINI - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
MINIKIT

In accordance with EN-1433STANDARD
Low height drainage channels MINI - MINIKIT Exterior: 120mm.
Interior: 98mm.
Height: 50mm.
Without Edge
M100

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M100 Exterior: 130mm.
Interior: 100mm.
Height: 60mm.
Without Edge
M100K

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M100K Exterior: 130mm.
Interior: 100mm.
Height: 80mm.
Galvanized Edge
M100KX

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M100KX Exterior: 130mm.
Interior: 100mm.
Height: 80mm.
Stainless Edge
M100V

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M100V Exterior: 155mm.
Interior: 100mm.
Height: 80mm.
Without Edge
M150

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M150 Exterior: 204mm.
Interior: 150mm.
Height: 80mm.
Without Edge
M150K

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M150K Exterior: 204mm.
Interior: 150mm.
Height: 102mm.
Galvanized Edge
M150KX

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M150KX Exterior: 204mm.
Interior: 150mm.
Height: 102mm.
Stainless Edge
M200

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M200 Exterior: 260mm.
Interior: 200mm.
Height: 100mm.
Without Edge
M200K

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M200K Exterior: 260mm.
Interior: 200mm.
Height: 125mm.
Galvanized Edge
M300

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M300 Exterior: 360mm.
Interior: 300mm.
Height: 125mm.
Without Edge
M300K

In accordance with EN-1433STANDARD
Low height drainage channels MINI - M300K Exterior: 360mm.
Interior: 300mm.
Height: 150mm.
Galvanized Edge

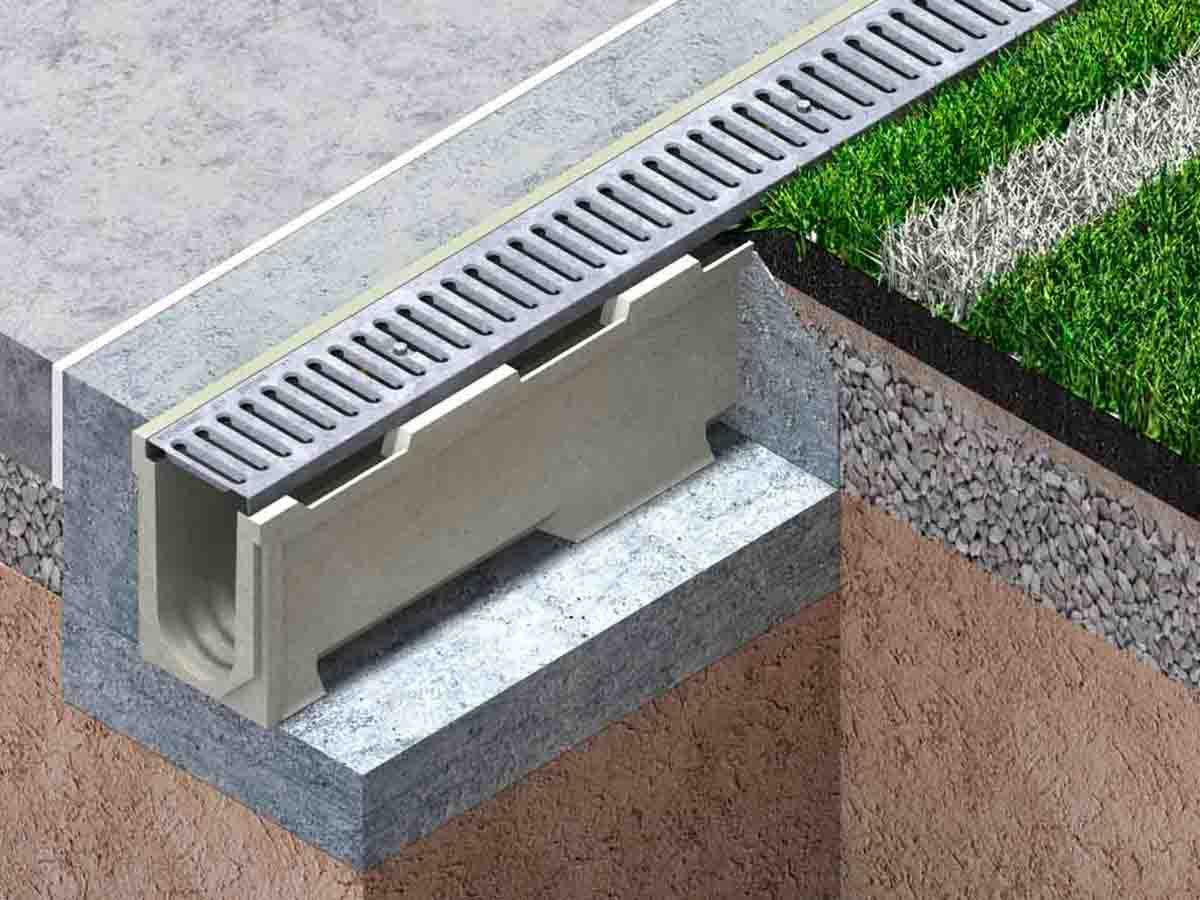

Drainage channels with slope for low traffic U

Channels with out a side edge, intended for use from pedestrians to sporadic traffic, but with greater heights than the SELF system, and with the choice of built-in slopes. Applications: Pedestrian areas, sports fields, urban areas, light car parking lots…
Up to load class C250 (according to the model).
Drainage channels with slope for low traffic U - type of load c-250 Drainage channels with slope for low traffic U - Applications Drainage channels with slope for low traffic U - Applications Drainage channels with slope for low traffic U - Applications Drainage channels with slope for low traffic U - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
U100

In accordance with EN-1433STANDARD
Drainage channels with slope for low traffic U - U100 Exterior: 130mm.
Interior: 100mm.
Height: 130-280mm.
Without Edge
U150

In accordance with EN-1433STANDARD
Drainage channels with slope for low traffic U - U150 Exterior: 204mm.
Interior: 150mm.
Height: 200-300mm.
Without Edge
U200

In accordance with EN-1433STANDARD
Drainage channels with slope for low traffic U - U200 Exterior: 260mm.
Interior: 200mm.
Height: 240-340mm.
Without Edge
U250

In accordance with EN-1433STANDARD
Drainage channels with slope for low traffic U - U250 Exterior: 310mm.
Interior: 250mm.
Height: 270-370mm.
Without Edge
U300

In accordance with EN-1433STANDARD
Drainage channels with slope for low traffic U - U300 Exterior: 360mm.
Interior: 300mm.
Height: 365-465mm.
Without Edge

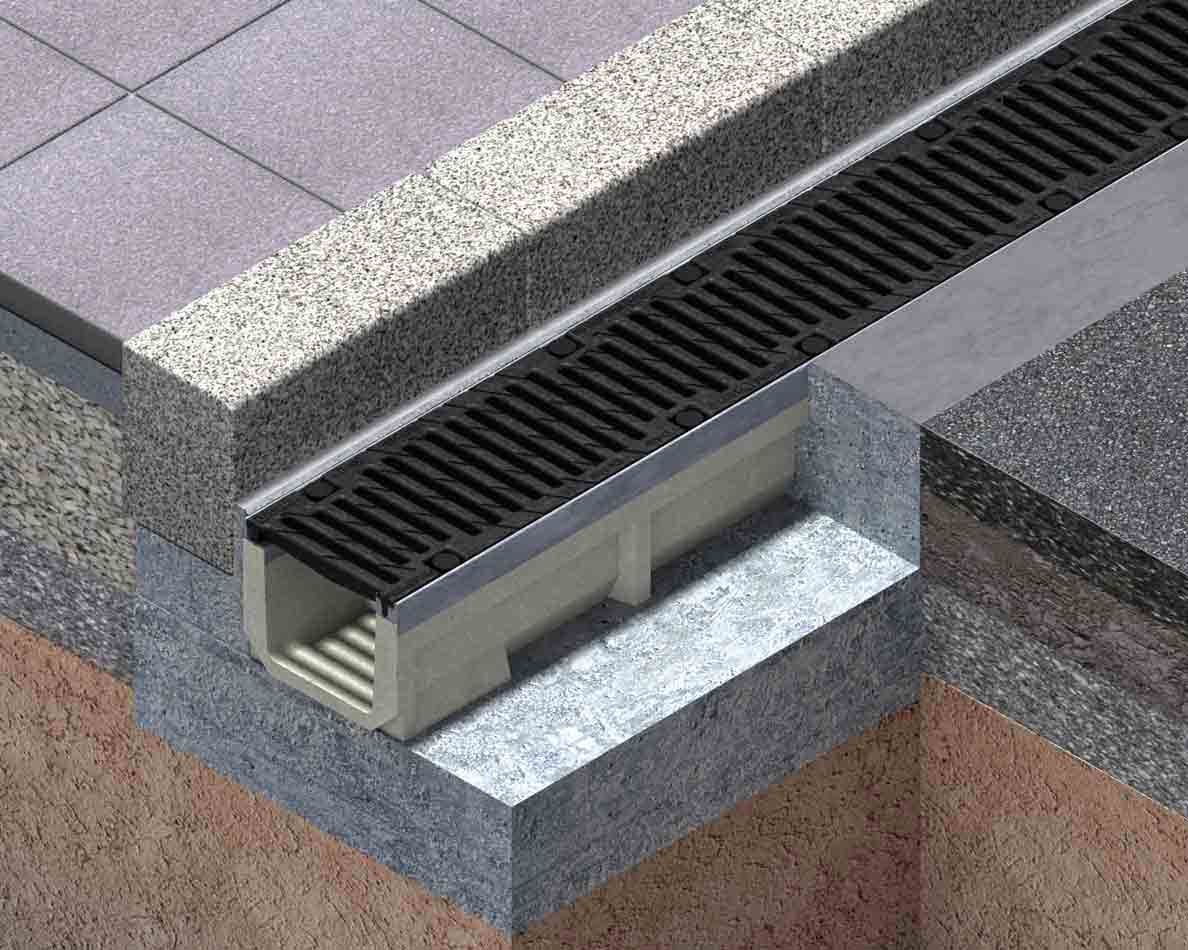

Drainage channels with slope for medium traffic UK

Channels with a galvanised steel edges, intended for very diverse uses. With the choice of built-in slopes. Highly recommended in the case of finishing off with concrete or asphalt pavement.
Applications: Pedestrian areas, urban developments, parking areas for light vehicles… Up to load class C250 (according to the model).
Drainage channels with slope for medium traffic UK - type of load c-250 Drainage channels with slope for medium traffic UK - Applications Drainage channels with slope for medium traffic UK - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
U100K

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U100K Exterior: 130mm.
Interior: 100mm.
Height: 150-300mm.
Galvanized Edge
U150K

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U150K Exterior: 204mm.
Interior: 150mm.
Height: 220-320mm.
Galvanized Edge
U200K

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U200K Exterior: 260mm.
Interior: 200mm.
Height: 263-363mm.
Galvanized Edge
U250K

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U250K Exterior: 310mm.
Interior: 250mm.
Height: 300mm.
Galvanized Edge
U300K

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U300K Exterior: 360mm.
Interior: 300mm.
Height: 390-490mm.
Galvanized Edge
U100KX

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U100KX Exterior: 130mm.
Interior: 100mm.
Height: 150-300mm.
Stainless Edge
U150KX

In accordance with EN-1433STANDARD
Drainage channels with slope for medium traffic UK - U150KX Exterior: 204mm.
Interior: 150mm.
Height: 220-320mm.
Stainless Edge



Drainage channels with V shape - MULTIV

New line of products better suited to market needs, providing in a single system the advantages of our other lines: the economy of the SELF system, the reduced heights of the MINI range, the 8-point fastening of the F line and the option of cascaded slopes provided for by the U and UK systems.
The multiV+ is available in different heights, and up to a load class of D400.
Drainage channels with V shape - MULTIV - type of load d-400 Drainage channels with V shape - MULTIV - Applications Drainage channels with V shape - MULTIV - Applications Drainage channels with V shape - MULTIV - Applications Drainage channels with V shape - MULTIV - Applications Drainage channels with V shape - MULTIV - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
MultiV100

In accordance with EN-1433STANDARD
Drainage channels with V shape - MULTIV - MultiV100 Exterior: 136mm.
Interior: 100mm.
Height: 80-300mm.
Galvanized Edge
MultiV150

In accordance with EN-1433STANDARD
Drainage channels with V shape - MULTIV - MultiV150 Exterior: 186mm.
Interior: 150mm.
Height: 80-320mm.
Galvanized Edge
MultiV200

In accordance with EN-1433STANDARD
Drainage channels with V shape - MULTIV - MultiV200 Exterior: 236mm.
Interior: 200mm.
Height: 80-370mm.
Galvanized Edge

Drainage channels with V shape - MULTIV
  • OPTIMIZED V-SHAPE SECTION MultiV+®

    Especially designed for channel runs with no longitudinal slope

    • Higher speed with lower flows
    • Bigger capacity for extreme flows

    The V-shaped design of the multiV+, channels has been developed to drain water faster, improving the self-cleaning effect of the channel. Its optimized cross section, larger than the traditional V-sections currently available on the market, provides bigger hydraulic capacity for extreme flow situations.

  • FASTENING SYSTEM rapidlock

    The fast and boltless ULMA Rapidlock fastening system makes possible to connect the grating to the channel body quickly, safely and practically effortlessly.

    • One-second fastening
    • Tool-free installation
    • Save on labour costs
    • Easy maintenance
    • Drainage channels with V shape - MULTIV
    • Drainage channels with V shape - MULTIV
  • MECHANICAL STABILITY, WITH 8 FASTENING POINTS

    Its 8-point fastening system provides higher stability and stress distribution throughout the grating and the channel.

  • MULTIPLE FASTENING OPTIONS

    Rapidlock® and screw-fastened systems can be replaced and combined:

    • Even with already installed channels.
    • No need to replace the grating.
    • By simply replacing the fastening components.
    • Drainage channels with V shape - MULTIV
    • Drainage channels with V shape - MULTIV

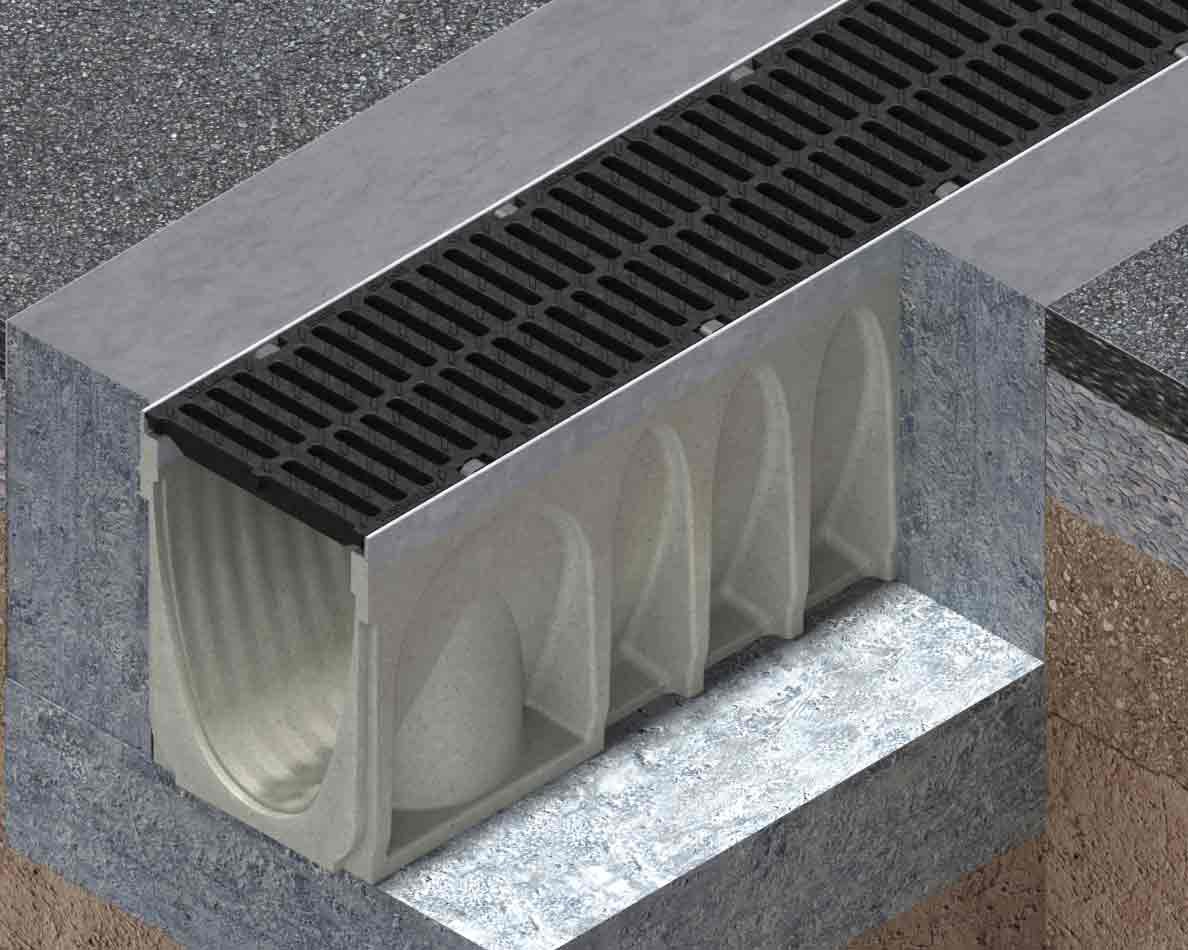

Low height drainage channels for heavy loads S

Channels for heavy loads, designed for heavy traffic areas. They have a galvanized edge on the sides. Gratings are locked by 4 bolts.
Applications: Service stations, port loading and unloading areas, industrial areas, airports, public roadways, heavy vehicle parking areas…
Up to load class F900 (according to the model).
Low height drainage channels for heavy loads  S - type of load f-900 Low height drainage channels for heavy loads  S - Applications Low height drainage channels for heavy loads  S - Applications Low height drainage channels for heavy loads  S - Applications Low height drainage channels for heavy loads  S - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
S200F

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S200F Exterior: 204mm.
Interior: 150mm.
Height: 162mm.
Galvanized Edge
S200FX

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S200FX Exterior: 204mm.
Interior: 150mm.
Height: 162mm.
Stainless Edge
S250F

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S250F Exterior: 260mm.
Interior: 200mm.
Height: 180mm.
Galvanized Edge
S300F

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S300F Exterior: 312mm.
Interior: 250mm.
Height: 210mm.
Galvanized Edge
S350F

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S350F Exterior: 360mm.
Interior: 300mm.
Height: 210mm.
Galvanized Edge
SM250F

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - SM250F Exterior: 260mm.
Interior: 200mm.
Height: 125mm.
Galvanized Edge
SM350F

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - SM350F Exterior: 360mm.
Interior: 300mm.
Height: 150mm.
Galvanized Edge
SM200MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - SM200MF Exterior: 204mm.
Interior: 150mm.
Height: 102mm.
Cast iron Frame
SM250MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - SM250MF Exterior: 260mm.
Interior: 200mm.
Height: 125mm.
Cast iron Frame
SM350MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - SM350MF Exterior: 360mm.
Interior: 300mm.
Height: 150mm.
Cast iron Frame
S200MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S200MF Exterior: 204mm.
Interior: 150mm.
Height: 162mm.
Cast iron Frame
S250MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S250MF Exterior: 260mm.
Interior: 200mm.
Height: 180mm.
Cast iron Frame
S300MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S300MF Exterior: 312mm.
Interior: 250mm.
Height: 210mm.
Cast iron Frame
S350MF

In accordance with EN-1433STANDARD
Low height drainage channels for heavy loads  S - S350MF Exterior: 360mm.
Interior: 300mm.
Height: 210mm.
Cast iron Frame



Drainage channels for heavy loads F

Channels for large loads and fastening using 4 bolts per grate, designed for heavy traffic areas. The difference of the S system, is that it offers the choice of built-in slopes. They are reinforced channels with a galvanized edge on the sides.
Applications: Service stations, port loading and unloading areas, industrial areas, airports, public roadways, heavy vehicle parking areas…
Up to load class F900 (according to the model).
Drainage channels for heavy loads F - type of load f-900 Drainage channels for heavy loads F - Applications Drainage channels for heavy loads F - Applications Drainage channels for heavy loads F - Applications Drainage channels for heavy loads F - Applications Drainage channels for heavy loads F - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
F100K

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F100K Exterior: 154mm.
Interior: 100mm.
Height: 190-310mm.
Galvanized Edge
F150K

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F150K Exterior: 206mm.
Interior: 150mm.
Height: 145-370mm.
Galvanized Edge
F200K

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F200K Exterior: 260mm.
Interior: 200mm.
Height: 263-363mm.
Galvanized Edge
F250K

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F250K Exterior: 310mm.
Interior: 250mm.
Height: 150-650mm.
Galvanized Edge
F300K

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F300K Exterior: 360mm.
Interior: 300mm.
Height: 300-600mm.
Galvanized Edge
F400K

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F400K Exterior: 462mm.
Interior: 400mm.
Height: 400mm.
Galvanized Edge
F100MF

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F100MF Exterior: 154mm.
Interior: 100mm.
Height: 130-310mm.
Cast iron Frame
F200MF

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F200MF Exterior: 260mm.
Interior: 200mm.
Height: 263-363mm.
Cast iron Frame
F300MF

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F300MF Exterior: 360mm.
Interior: 300mm.
Height: 300-490mm.
Cast iron Frame
F400MF

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F400MF Exterior: 466mm.
Interior: 400mm.
Height: 400mm.
Cast iron Frame
F150KX

In accordance with EN-1433STANDARD
Drainage channels for heavy loads F - F150KX Exterior: 206mm.
Interior: 150mm.
Height: 145-370mm.
Stainless Edge



Drainage channels for sport venues SPORT

Channels intended for sport and play facilities. Applications: Football fields, athletic fields, showers, dressing rooms, beach pools, etc. Up to load class C250 (according to the model).
Drainage channels for sport venues SPORT - type of load c-250 Drainage channels for sport venues SPORT - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
M100V

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - M100V Exterior: 155mm.
Interior: 100mm.
Height: 80mm.
Without Edge
OCULTO10

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - OCULTO10 Exterior: 140mm.
Interior: 0mm.
Height: 140mm.
Without Edge
D100

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - D100 Exterior: 155mm.
Interior: 100mm.
Height: 140-235mm.
Without Edge
DP100.20

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - DP100.20 Exterior: 155mm.
Interior: 100mm.
Height: 235mm.
Without Edge
DPS100

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - DPS100 Exterior: 150mm.
Interior: 98mm.
Height: 140mm.
Without Edge
SU100

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - SU100 Exterior: 130mm.
Interior: 100mm.
Height: 180-230mm.
Without Edge
SU200

In accordance with EN-1433STANDARD
Drainage channels for sport venues SPORT - SU200 Exterior: 250mm.
Interior: 200mm.
Height: 240-390mm.
Without Edge



Plastic channels HYDRO

The new line of channels HYDRO, manufactured in accordance with the EN-1433 Standard in black plastic, complement the already broad range of Polymer Concrete products.

Main Characteristics

  • Compatible with the full range of grates available for polymer concrete channels
  • The broadest range of grates available in ductile casting, galvanized steel, stainless steel and plastic including the new heel proof versions.
  • Modular and robust design for load classes of up to C-250 in accordance with the EN – 1433 Standard.
  • Simple leak tight tongued and grooved assembly.
  • Premarked to cut at 0.5m maintaining the leak tight tongued and grooved assembly.
Plastic channels HYDRO - type of load c-250 Plastic channels HYDRO - Applications Plastic channels HYDRO - Applications Plastic channels HYDRO - Applications
Channel Types of LOAD   Width/Height Perfil/Marco
HYDROKIT

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDROKIT Exterior: 130mm.
Interior: 100mm.
Height: 65mm.
Without Edge
HYDROMINI

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDROMINI Exterior: 130mm.
Interior: 100mm.
Height: 65mm.
Without Edge
HYDROMINIPLUS

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDROMINIPLUS Exterior: 132mm.
Interior: 100mm.
Height: 84mm.
Composite Edge
HYDRO

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDRO Exterior: 138mm.
Interior: 100mm.
Height: 134mm.
Without Edge
HYDROPLUS

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDROPLUS Exterior: 138mm.
Interior: 100mm.
Height: 148mm.
Composite Edge
HYDRO250

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDRO250 Exterior: 266mm.
Interior: 200mm.
Height: 160mm.
Without Edge
HYDRO250PLUS

In accordance with EN-1433STANDARD
Plastic channels HYDRO - HYDRO250PLUS Exterior: 266mm.
Interior: 200mm.
Height: 185mm.
Composite Edge


GARAGE KIT PRO

A PROFESSIONAL SOLUTION for draining surface water on your driveway, in a SIMPLE KIT.
  • Plastic channels HYDRO

INSTALLATION INSTRUCTIONS FOR HYDRO SYSTEM

Plastic channels HYDRO Download pdf with the instructions




Technical Information


Complete Drainage System

Prefabricated Systems for ULMA Linear Drainage are the result of combining our material, polymer concrete, with its prefabricated capacity, which gives it an unbeatable ease of installation and manpower saving. All of our drainage channels are designed and fabricated in accordance with Standard EN-1433. We also have professional team with extensive experience that provides our customers with customized consulting and service.

COMPLETE DRAINAGE SYSTEM

We supply a Complete Drainage system. This consists of the following elements:

  • Channels
  • Sump Units
  • Gratings
  • Locking system
  • Bucket
  • Lateral outlets
Complete Drainage System

Types of slopes for drainage channels

  • Types of slopes for drainage channels - Without slope

    WITHOUT SLOPE
    All of the pipes are placed at the same height.

    Advantages: Very simple measure from an execution point of view.
    It has a hydraulic capacity sufficient for short stretches of drainage.

  • Types of slopes for drainage channels - Presloped

    PRESLOPED
    Channels of variable height with a built-in slope of 0.5% and 2.5%*, according to the model.

    Advantages: Very appropriate for areas where the ground has no natural slope.
    * ULMA Polymer Concrete offers the only channel on the market with continuous presloped of 2.5%.

  • Types of slopes for drainage channels - Cascaded slope

    CASCADED SLOPE
    A combination of straight channels of various heights that are joined using step connectors.

    Advantages: Simple and economic onsite execution when slopes need to be included.

  • Types of slopes for drainage channels - Mixed Slope

    MIXED SLOPE
    A combination of the previous systems.

    Advantages: Very appropriate to drain long-length stretches. It allows for the optimization of hydraulic capacity to the utmost.

Locking systems for drainage channels

  • Locking systems for drainage channels - CLICK LOCKING SYSTEM WITHOUT SCREW

    BY PRESSING OR CLICKING

    • Especially suited for channels without a ductile iron edge
    • Specifically for A15 load class
    • Screwless
  • Locking systems for drainage channels - LOCKING BAR AND SCREW SYSTEM

    LOCKING BAR AND SCREW

    • Channels with or without edge
    • Up to C250 load class
    • Two locking bars and two screws per LM
  • Locking systems for drainage channels - LOCKING SYSTEM BY SCREW TO THE  CHANNEL BASE

    BY SCREW TO THE CHANNEL BASE

    • Channels with or without edge
    • Up to C250 load class
    • Two screws by ML
  • Locking systems for drainage channels - BOLTLESS LOCKING SYSTEM RAPIDLOCK

    BOLTLESS LOCKING SYSTEM RAPIDLOCK

    • Channels with edge
    • Up to type of load D400
    • 8 locking scres per LM
  • Locking systems for drainage channels - 8 BOLT LOCKING SYSTEM

    BY MEANS OF 8 BOLTS

    • Channel with ductile iron edge
    • Type of load from D400 up to F900
    • 8 bolts per ML

Gratings for drainage channels

ULMA provides a full range of gratings which come in various materials and designs.

Materials

  • Composite
  • Ductil Iron
  • Galvanized Steel
  • Polymer Concrete
  • Stainless Ductil Iron
  • Stainless Steel

Designs

  • Closed
  • Double Slot
  • Heelproof Mesh
  • Heelproof Slotted
  • Longitudinal Slotted
  • Normal Mesh
  • Normal Slotted (Runway)
  • Perforated
  • Simple Slot

In addition to gratings for pedestrian usage (both for outdoor and indoor use) and for vehicles , ULMA is endowed with the widest range of gratings for major load areas such as ports, docks and airports. ULMA gratings are designed in accordance with European Standard EN-1433 which regulates covering devices, and closure devices for circulation areas used by pedestrians and vehicles and classifies the gratings into six categories based on their installation site.

  • Gratings for drainage channels - Slotted Ductile Iron
    Slotted Ductile Iron
    Gratings for drainage channels - Closed Ductile Iron
    Closed Ductile Iron
    Gratings for drainage channels - Galvanised Stainless Steel Slotted
    Galvanised Stainless Steel Slotted .
    Gratings for drainage channels - Galvanised Stainless Steel Mesh
    Galvanised Stainless Steel Mesh
    Gratings for drainage channels - Perforated Galvanised Stainless Steel
    Perforated Galvanised Stainless Steel
    Gratings for drainage channels - Single Slot Galvanised Steel
    Single Slot Galvanised Steel
    Gratings for drainage channels - Double Slot Galvanised Steel
    Double Slot Galvanised Steel
    Gratings for drainage channels - Lateral Single Slot Galvanised Steel
    Single Slot Galvanised Steel
    Gratings for drainage channels - Polymer Concrete
    Polymer Concrete
    Gratings for drainage channels - Heelproof Slotted Composite
    Heelproof Slotted Composite
    Gratings for drainage channels - Composite Mesh
    Composite Mesh

Single Slot Gratings

Inverted-T-shaped Gratings in galvanized steel with slot-shaped hydraulic captation zone in the form of a 15 mm wide single or double slot and load class up to D-400. Discreet in appearance, it is the ideal solution in cobbled areas or stamped concrete pavements in pedestrian streets, squares etc.


Gratings for drainage channels - ULMA assembly illustration

Closed gratings range

Especially designed for wiring conduits.

Sump units for drainage channels

Single-part sump units

The general dimensions of the single-part sump units, the diameters of the different premarks on the outlets and their position in relation to the surface have been shown below.

Sump units for drainage channels - Single-part sump units
A B C D D' E F F' G H I I' J K L L' M N N' O P P' Q R
ASELF200 500 500 204 378           140 258   160 135 230   200 248   160 248   160 204
ASELF200K 500 500 204 400           140 280   160 135 260   200 270   160 270   160 204
AS200F 500 500 204 400           140 280   160 135 260   200 270   160 270   160 210
ASELF250K 500 500 260 500   250 310   315                 390   160 390   160 260
AS250F 500 500 260 500   250 310   315                 390   160 390   160 266
ASELF350K 500 500 360 500   250 316   315                 390   160 370   200 360
AS350F 500 500 360 500   250 316   315                 390   160 370   200 366
AEURO100 500 500 130   300         115   225 90 115   215 110   210 90   210 90 130
AEURO100K 500 500 130 318           115 243   90 115 233   110 228   90 228   90 130
AU100 500 516 130   542 250   452 110 140   202 160 140   227 110   452 90   452 90 130
ASU100 500 516 130   540 250   450 110 140   200 160 140   255 110   450 90   450 90 130
AK100 500 516 130 560   250 470   110 140 220   160 140 245   110 470   90 470   90 130
AF100 500 516 154 580   250 490   110 140 245   110 140 225   160 500   110 500   110 160
AD100 500 516 155   560         133   425 110 158   425 160   410 90   410 90 155
ADP100 500 516 155   560         133   425 110 158   425 160   410 90   410 90 155
ADPS100 500 500 150   400 250   220 160                 310   90 300   90 150
AR100G 500 500 136 490   250 390   110 250 370   160         390   110
AR150G 500 500 186 590   250 450   200 250 470   160         489   110
AU150 500 500 204   328         160   210 160 142   165 160   95 110   95 110 204
AK150 500 500 204 350           160 232   160 142 187   160 117   110 117   110 204
AF150 500 500 204 350           160 232   160 142 187   160 117   110 117   110 210
AU200 500 500 204 350           160 232   160 142 187   160 117   110 117   110 210
AK200 500 500 260   338         160   210 160 160   180 200             260
AF200 500 500 260 363           160 235   160 160 205   200             260
AB200 500 500 260 363           160 235   160 160 205   200             266
AU250 500 500 260 363           160 235   160 160 205   200             266
AK250 500 516 310   375         160   220 160 150   180 200             310
AF250 500 516 310 400           160 245   160 150 205   200             310
AB250 500 516 310 400           160 245   160 150 205   200             316
AU300 500 516 310 400           160 245   160 150 205   200             316
AK300 500 516 360   365 250   225 200                             360
AF300 500 516 360 390   250 250   200                             360
AB300 500 516 360 390   250 250   200                             366

Various part sump units

The general dimensions of the various-part or stackable sump units, the diameters of the different premarks on the outlets and their position in relation to the surface have been shown below. The height of the stackable sump units can also be adjusted by incorporating one or more intermediate parts.

Sump units for drainage channels - Various part sump units
A B C D D' E F F' G H I I' J K L L' M N N' O P P' Q R
AU150S+A150B 500 500 204   633         160   515 160 142   470 160   400 110     400 204
AK150S+A150B 500 500 204 655           160 537   160 142 492   160 422   110 422     204
AF150S+A150B 500 500 204 655           160 537   160 142 492   160 422   110 422     210
AB150S+A150B 500 500 204 655           160 537   160 142 492   160 422   110 422     210
AU200S+A200B 500 500 655 260   680       160   552 160 160   522 200             260
AK200S+A200B 500 500 260 705           160 577   160 160 547   200             260
AF200S+A200B 500 500 260 705           160 577   160 160 547   200             266
AB200S+A200B 500 500 260 705           160 577   160 160 547   200         210   266
AU250S+A250B 500 516 310   725         160   570 160 150   530 200             310
AK250S+A250B 500 516 310 750           160 595   160 150 555   200         452   310
AF250S+A250B 500 516 310 750           160 595   160 150 555   200         450   316
AF250S+A250B415 500 500 310 916   250 663   415                 773   200       316
AB250S+A250B 500 516 310 750           160 595   160 150 555   200             316
AB250S+A250B415 500 500 310 916   250 663   415                 773   200   410   316
AU300S+A300B 500 516 360   705 250   225 200                         410   360
AK300S+A300B 500 516 360 730   250 250   200                             360
AF300S+A300B 500 516 360 730   250 250   200                         95   366
AB300S+A300B 500 516 360 730   250 250   200                             366
AOCULTO100S+AU100 500 516 130   684 258   594 110 140   344 160 140   369 110   594 90     594 140
AOCULTO100S+AEURO100 500 500 130   442         115   367 90 115   357 110   352 90     352 140

Load recommendation for drainage channels

  • Load recommendation for drainage channels - CLASS A-15

    CLASS A-15
    Areas which can only be used by pedestrians and cyclists

  • Load recommendation for drainage channels - CLASS B-125

    CLASS B-125
    Pavements, pedestrian and comparable areas, private vehicle car parks or vehicle parking platforms.

  • Load recommendation for drainage channels - CLASS C-250

    CLASS C-250
    Curb laterals and areas without traffic with resistant edges and similar areas

  • Load recommendation for drainage channels - CLASS D-400

    CLASS D-400
    Road surfaces (including pedestrian streets) resistant edges and parking areas for all kinds of road vehicles.

  • Load recommendation for drainage channels - CLASS E-600

    CLASS E-600
    Areas submitted to high wheel loads such as ports and dikes or dock laterals.

  • Load recommendation for drainage channels - CLASS F-900

    CLASS F-900
    Areas subject to particularly high wheel loads such as runways.

Installation instructions for drainage channels

General works site layout conditions

  • The ULMA Architectural Solutions drainage system has been designed and tested under the strictest premises of EN1433 STANDARD, following the construction details set out in these installation instructions.

    The design of the deck adjoining the concrete block/channel unit (concrete, asphalt or paving stone) must be endowed with the expansion and retraction joints required to prevent any tangential or perpendicular strain on the concrete block and channel unit. In line with the construction details of the deck, the sizing of said joints will be decided by the Project Management or designer.

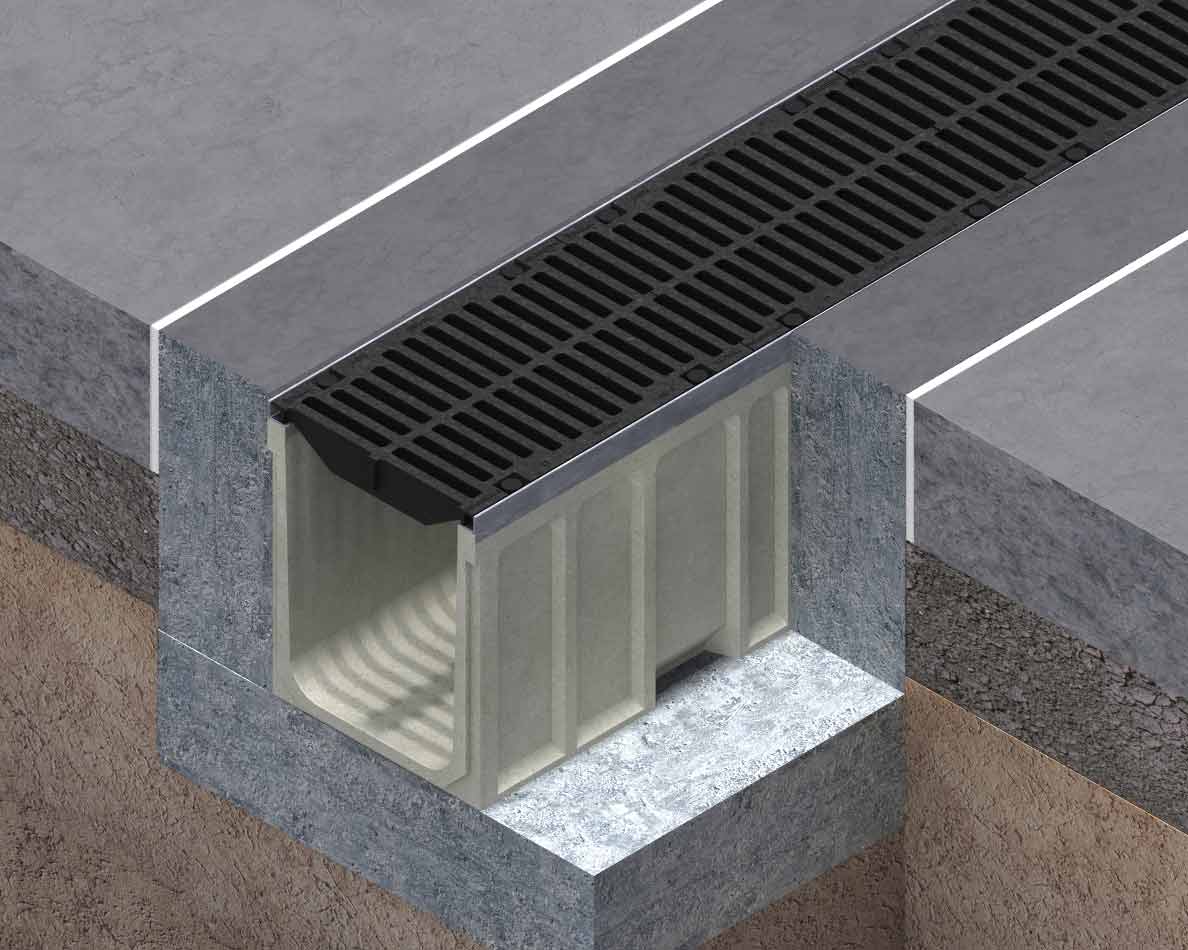

    The illustrations below show what the appropriate installed section should be for each flooring type and type of load as well as the recommended construction details.


    Installation instructions for drainage channels - PavingPaving
  • Installation instructions for drainage channels - Asphalt PavingAsphalt Paving
  • Installation instructions for drainage channels - Concrete PavingConcrete Paving

Indications common to the different Installation types

  • The cable conduit or ditch must be deep and wide enough to meet the block dimensions recommended in table 1 in line with the type of load required.

    Take special care with the installation of an edgeless channel; the grating thickness must be such that, once the installation has been completed, it remains below the flooring as recommended in Detail A.

    In the event that a compacting process is required in the vicinity of the channel (e.g. asphalt flooring load class A15 and B125), special care must be taken not to damage the channel edge and walls.

    The surrounding flooring and concrete block must remain on a plane of between 3 and 5 mm above the plane of the upper edge of the channel.

    Table 1: Thickness of concrete block

    Load in accordance with EN-1433 Standard
    X
    Minimum lateral thickness (mm.)
    Z
    Minimum base thickness (mm.)
    Y
    Height of lateral kidney-shaped
    Recommended Wire mesh (cmxcmxmm) Concrete Type (Kg/cm2)
    A-15 100 100 Up to a point situated 40mm under the flooring level.   150
    B-125 100 100   250
    C-250 150 150 Up to the level of the grating and adjoining paving   250
    D-400 150 150 15 x 15 x 6 250
    E-600 150 150 15 x 15 x 10 250
    F-900 200 200 15 x 15 x 12 250
  • Installation instructions for drainage channels
  • Installation instructions for drainage channels
  • Installation instructions for drainage channels

General Recommendations

  • Installation instructions for drainage channels The installation of the channels will start at the removal point or the deepest point.

  • Installation instructions for drainage channels Should any of the coats adjoining the concrete block in turn, be made of concrete, an expansion joint must always be placed between the block and said concrete coat.

  • Installation instructions for drainage channels Before pouring the concrete corresponding to the concrete block, place wooden slats or even the gratings themselves protected by a plastic cover so as to avoid deformations which prevent the subsequent installation of the gratings.

  • Installation instructions for drainage channels When opening the premarked outlets (vertical or horizontal), it is recommended to tap the perimeter every 5-6 cm with a drill or a rotaflex so as to subsequently be able to open the premark carefully with a hammer and chisel.

  • Installation instructions for drainage channels The channel must not be used as an expansion joint. This is why whenever there is concrete alongside the concrete bedding, an expansion joint must be placed between both coats. The adjoining deck must be endowed with those expansion and retraction joints required to avoid lateral thrusts onto the concrete bedding.

  • Installation instructions for drainage channels It is recommended to carry out the retraction joint perpendicular to the channel every 6-7 metres and to make it coincide with the union between the channels.

1. With a view to clarifying any query you may have in this regard, we would recommend you to get in touch with ULMA Architectural Solutions.
2. ULMA Architectural Solutions will not accept any complaint as regards any deteriorated material owing to a failure to comply with the installation instructions recommended by the manufacturer.

EU Standard EN-1433 for drainage channels

The products set out in this Technical Brochure are designed according to the premises of EN 1433 STANDARD "Drainage channels for the circulation areas used by pedestrians and vehicles. Classification, design and testing requirements, marking and evaluation of compliance" This Standard specifies the definitions, classes, design and testing requirements, marking and quality control for drainage channels.

EU Standard  EN-1433 for drainage channels

Advantages


Advantages which set us apart

Advantages which set us apart
  • Personalised service and advice.
  • Close relationship with the client. Vast geographic coverage via Commercial Delegates and Distributors.
  • Widest range on the market of channels, gratings and accessories: a complete drainge system.
  • Product developed and certified in accordance with the UNE EN-1433 Standard .
  • Constant innovation in product R&D.

We provide our clients with a complete Technical Brouchure, serving as the ideal back-up for engineers and prescribers as a whole. It contains technical descriptions, plans in CAD, product images and price breakdowns in Presto and TCQ2000 format.

Advantages of linear drainage for channels

Here at ULMA we give a little bit more than channels and gratings. We provide solutions through a complete drainage system which includes:

  • 1ML modular channels.
  • 1/2 ML linear and siphonic sump units
  • Channel Gratings:
    • Made of various materials: ductile iron, galvanised steel, stainless steel, composite, polymer concrete,...
    • With different designs: slotted, mesh, perforated, single-slot, closed,...
    • Endowed with type of load up to F900 in accordance with Standard EN 1433.
  • Various accessories such as start and end covers, locking bars, screws etc.

ULMA channels represent a new way of thinking about surface drainage. Occasional drainage or by means of gullies has been surpassed in Europe and the US by linear drainage.

Advantages which set us apart - Linear Drainage Advantages

  • Facilitates the implementation of slabs or floorings.
  • It is hydraulically much more efficient than occasional drainage.
  • Prevents waterlogging in occasional areas.
  • The grating is such that it is registrable at any point, facilitating cleaning and system maintenance.
  • Absorbs minimum slopes of the site without any need for complicated implementations at the works site.
  • It is much more feasible in terms of the final cost of the drainage system.
Polymer Concrete advantages for drainage channels

Polymer Concrete advantages for drainage channels

  • Polymer Concrete advantages for drainage channels - Compressive strength Compressive strength Polymer concrete applied to prefabricated systems can withstand over 1000 kp/cm2 of compressive strength, compared with the 257 kp/cm2 which traditional concrete can bear before breaking or cracking.

  • Polymer Concrete advantages for drainage channels - Ideal for fluid run-off Ideal for fluid run-off The polymeric nature of this material allows smooth surfaces with very low friction on prefabricated elements, thereby facilitating the rapid run-off of fluids and also offering a water absorption index which virtually non-existent, compared with 5-10% with traditional concrete.

  • Polymer Concrete advantages for drainage channels - Resistance to chemicals Resistance to chemicals Polyester resin, which polymer concrete is made of, is a material which can withstand a very broad range of chemicals as it is inert and does not react when in contract with said chemical compounds in different concentrations.

  • Polymer Concrete advantages for drainage channels - Remains unchanged in freezing and thawing cycles Remains unchanged in freezing and thawing cycles Contrary to traditional materials, this one is not affected by freezing and thawing cycles, avoiding the appearance of fissures or cracks and keeping all its physical properties intact.

  • Polymer Concrete advantages for drainage channels - Lightness Lightness Thanks to its excellent mechanical properties, it allows parts with a finer profile to be made. Lightness which becomes savings by reducing the use of auxiliary means of transport to the works site and facilitating their installation at the site with unbeatable performance.

  • Polymer Concrete advantages for drainage channels - Abrasion wear and tear Abrasion wear and tear The hardness of the silica aggregates ensures the good upkeep of those surfaces exposed to wheeled traffic owing to the polymer concrete's optimum resistance to abrasion.

  • Polymer Concrete advantages for drainage channels - Shock resistance Shock resistance The properties of this material, along with its optimum prefabrication design, increase its capacity to withstand and absorb crash forces, affording great resistance to impacts.

Hydraulic calculation Optimal Drain

ULMA Architectural Solutions Hydraulic Calculation software

To ensure drainage systems with optimal evacuation capacity and cost, ULMA Architectural Solutions has developed a multi-platform software solution offering the possibility of performing a hydraulic study for each project and precisely defining the most suitable channel.

Hydraulic calculation Optimal Drain - Hydraulic calculation optimal drain
  • Simplicity It only requires a few project parameters, such as line lengths, catchment areas, slopes and run-off coefficients of each surface, to accurately reflect the current situation and the subsequent study.
  • Precision To calculate the water&'s behaviour in the channels a mathematical model is used that takes the Spatially Varied Flow with Increasing Flow for Open Channels as the base, which describes the water's behaviour more accurately than other commonly used models and formulas.
  • Multiple Functionalities You can enter different rainfall data for any geographic area worldwide, calculate different channel lines in the same project and find the right channel among hundreds of references in ULMA's extensive catalogue, based on their Heights, Widths, Sections, Load Classes or other characteristics.
  • Cost Reduction The software optimises the cost of channel lines by selecting the most appropriate channel for the application, the exact location of intermediate outlets or the exact distribution of channels in cascade slope.
  • Detailed Report As a result we obtain a report with references and dimensions of the necessary channels, sheet of water, filling percentages, water flows and speeds in each of the project lines. All the necessary data for the validation of the drainage system.
